B Grade Board Scrap Classification Wiki
Part 1 – Introduction, Classification Philosophy, Medium-Grade Electronic Boards, Technical Characteristics, and Recoverable Materials

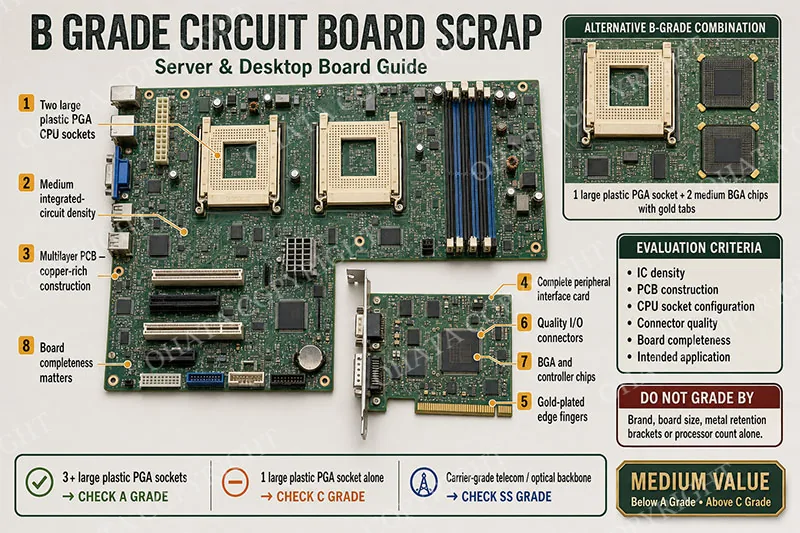

Introduction to B Grade Board Scrap
B Grade is Ohata's medium-value computer and interface-board category below A Grade and above C Grade. Typical candidates include server boards with two large plastic PGA CPU sockets, or one large plastic PGA socket plus two medium BGA chips with gold tabs, selected desktop motherboards in socket groups 1, 3, 5 or 8, lower-complexity small-business network boards, and complete peripheral interface cards.
Do not assign B Grade from brand, board size, metal retention brackets or “two or more processors” alone. Three or more large plastic PGA sockets should be checked against A Grade. One large plastic PGA socket should be checked against C Grade unless the required BGA-chip combination is present. Carrier-grade telecom and optical/network-backbone boards should be checked against SS Grade.
Typical examples include lower-grade telecommunications boards, peripheral interface cards, plastic multi-socket server motherboards, metal server motherboards, desktop motherboards with medium-value CPU socket designs, embedded controller boards, and computer interface modules. While they usually contain fewer integrated circuits, less gold plating, and simpler PCB layouts than higher-grade boards, they still provide significant quantities of copper and recyclable electronic materials.
The Ohata Board Scrap Classification System evaluates B Grade boards using objective technical criteria, including integrated circuit density, PCB construction, CPU socket configuration, connector quality, board completeness, and intended application. This standardized approach helps buyers, suppliers, recyclers, and refiners classify materials consistently while improving pricing transparency and recovery efficiency.
Why B Grade Exists
Electronic circuit boards cover an enormous range of designs and material compositions. Some boards contain exceptionally high concentrations of precious metals and sophisticated semiconductor packages, while others are engineered primarily for cost efficiency and standard computing tasks. Between these two extremes lies a large group of electronic assemblies that possess meaningful recycling value without meeting the technical characteristics required for premium classifications.
The B Grade category was established to identify these medium-value boards. Rather than grouping them with high-grade computer hardware or low-grade appliance electronics, the Ohata Classification System recognizes B Grade as a distinct category that reflects moderate integrated circuit density, reliable PCB construction, and consistent recoverable material content.
This classification improves purchasing accuracy by allowing recyclers to separate medium-grade electronic boards from both premium materials and lower-value consumer electronics. Proper segregation also benefits downstream refiners by providing cleaner material streams and more predictable metal recovery rates.
The Ohata Classification Philosophy
The Ohata Board Scrap Classification System is based on the principle that every circuit board should be evaluated according to its measurable engineering characteristics rather than its original retail price, manufacturer, or physical dimensions.
For B Grade boards, classification is determined by considering several technical factors together, including integrated circuit density, PCB construction, connector quality, CPU socket design, semiconductor coverage, board application, and recoverable material value. No single feature determines the grade; instead, the overall electronic complexity and material composition of the board are assessed.
This objective methodology allows similar boards to receive consistent classifications regardless of fluctuations in commodity prices or changes in electronic technology. By focusing on the physical characteristics of the board itself, the Ohata system creates a practical grading standard that supports transparent transactions throughout the global electronic recycling industry.
Medium-Grade Electronic Boards
B Grade boards are commonly found in commercial computers, office equipment, communication devices, entry-level enterprise systems, embedded controllers, and general electronic products. These boards are designed to deliver dependable performance while balancing manufacturing cost and functionality.
Unlike industrial automation equipment or carrier-grade telecommunications hardware, B Grade products typically serve business, educational, and commercial environments where extremely high reliability is not required. As a result, they often use fewer premium materials while maintaining good overall construction quality.
Examples include:
Office desktop motherboards
Entry-level server boards
Communication interface modules
Peripheral controller boards
Embedded computer boards
Basic telecommunications equipment
Storage interface cards
Expansion controllers
Industrial support modules
Although these products contain fewer high-end semiconductor packages than premium electronic assemblies, they remain valuable sources of copper, integrated circuits, and recoverable precious metals.
Typical B Grade Board Types
Several board categories commonly qualify for B Grade classification within the Ohata system.
Lower-grade telecommunications boards support standard networking and communication equipment but generally contain fewer communication processors and less complex PCB construction than enterprise infrastructure boards classified as SS Grade.
Peripheral interface boards provide communication between computers and external devices. Examples include USB controllers, serial interface cards, printer interface boards, and basic communication adapters.
Plastic multi-socket server motherboards often contain enterprise processors and multiple memory channels but use more cost-efficient construction than higher-grade server platforms.
Metal server motherboards may feature metal CPU retention mechanisms, moderate integrated circuit density, and standard enterprise chipsets while remaining below the complexity associated with A+ Grade systems.
Desktop motherboards with medium-value CPU sockets represent one of the most common B Grade categories. These boards generally include modern consumer chipsets, moderate component density, and standard multilayer PCB construction.
Embedded controller boards found in kiosks, office equipment, commercial machinery, and information terminals frequently meet the characteristics of B Grade because they combine dependable engineering with moderate material value.
Technical Characteristics
B Grade boards exhibit several engineering characteristics that distinguish them from both premium and lower-grade electronic assemblies.
Moderate Integrated Circuit Density
Compared with A Grade hardware, B Grade boards generally contain fewer integrated circuits and simpler chipset architectures. They commonly include one primary processor, several controller ICs, memory devices, communication interfaces, and power management circuits.
While semiconductor coverage remains substantial, the PCB surface is typically less densely populated than industrial controllers, enterprise servers, or telecommunications equipment.
Mid-Range Chipset Complexity
Most B Grade boards utilize integrated chipsets that combine multiple functions into fewer semiconductor packages. This reduces manufacturing cost while maintaining reliable system performance.
Typical chipsets include:
Memory controllers
Storage controllers
USB controllers
Ethernet controllers
Audio processors
Graphics interfaces
Power management ICs
This level of integration results in good recycling value while using fewer components than premium systems.
Standard Multilayer PCB Construction
Most B Grade boards are manufactured using fiberglass multilayer printed circuit boards that provide adequate electrical performance and mechanical durability.
Typical features include:
Two to six copper layers
Reinforced fiberglass laminate
Precision solder masks
Standard power distribution planes
Durable mounting areas
Surface-mounted electronic assemblies
Although simpler than industrial PCBs, these boards still contain significant recoverable copper and quality electronic materials.
Enterprise-Quality Connectors
Many B Grade boards continue to use reliable connectors for expansion cards, processors, memory modules, storage devices, and communication interfaces.
Common connector types include:
PCI Express slots
Memory sockets
SATA connectors
USB headers
Ethernet ports
Power connectors
Internal expansion connectors
Gold plating is typically present but thinner and less extensive than on higher-grade electronics.
Recoverable Materials
B Grade boards remain valuable because they contain a balanced combination of recoverable metals.
Copper
Copper is the primary recoverable material and is found throughout the PCB in signal traces, internal power planes, grounding layers, and connector contacts.
Gold
Gold is commonly present on edge connectors, memory sockets, CPU contacts, communication interfaces, and integrated circuit bond wires. Although quantities are generally lower than A Grade boards, gold remains an important contributor to recycling value.
Silver
Silver may be recovered from electrical contacts, solder materials, and specialized connectors used in commercial computing equipment.
Palladium
Small quantities of palladium are contained within multilayer ceramic capacitors used throughout the PCB.
Tin and Nickel
Tin-based solder and nickel-plated connector materials contribute additional recyclable metals during downstream processing.
Why B Grade Boards Remain Valuable
Although B Grade boards contain fewer premium semiconductor packages and lower precious metal concentrations than higher classifications, they continue to represent a significant portion of the global electronic scrap stream. Their widespread availability, reliable PCB construction, substantial copper content, and moderate quantities of gold, silver, and palladium make them economically valuable for recycling.
By separating B Grade materials from lower-value appliance boards and consumer electronics, recyclers can improve processing efficiency, increase recovery consistency, and maintain more accurate purchasing standards. For these reasons, the Ohata Board Scrap Classification System recognizes B Grade as an essential category that bridges premium computer hardware and lower-grade electronic assemblies while supporting efficient resource recovery throughout the electronic recycling industry.
Part 2 – Server Boards, Desktop Motherboards, Telecommunications Equipment, Peripheral Boards, Manufacturers, and Identification Methods
Plastic Multi-Socket Server Motherboards
Plastic multi-socket server motherboards are among the most common products assigned to B Grade within the Ohata Board Scrap Classification System. These boards support two or more processors but are generally manufactured for entry-level or mid-range enterprise servers rather than high-performance data centers. Compared with premium server platforms classified as A+ Grade, they typically contain fewer integrated circuits, lighter PCB construction, and lower concentrations of gold-plated connectors.
Typical features include:
Two processor sockets with plastic retention mechanisms
Multiple memory slots
Enterprise chipsets
Standard voltage regulation modules
PCI Express expansion slots
SATA or SAS storage interfaces
Onboard Ethernet controllers
Although these boards contain substantial copper and quality electronic components, their overall semiconductor density is usually lower than higher-grade enterprise systems. Their moderate construction quality and recoverable material value make them well suited to the B Grade category.
Metal Server Motherboards
Metal server motherboards represent another important B Grade classification. These boards often feature metal CPU retention brackets, reinforced processor mounting systems, and enterprise-oriented motherboard layouts.
They are commonly found in:
Rack-mounted servers
Small business servers
Departmental computing systems
Network storage appliances
Virtualization hosts
Compared with plastic server boards, metal server motherboards generally provide improved mechanical strength and thermal performance. However, many still contain fewer communication processors and less complex PCB construction than premium A+ Grade server platforms.
Typical components include:
Enterprise processors
Memory controllers
RAID interfaces
Power management circuits
Network controllers
Expansion connectors
The combination of dependable engineering and moderate integrated circuit density supports their classification as B Grade.

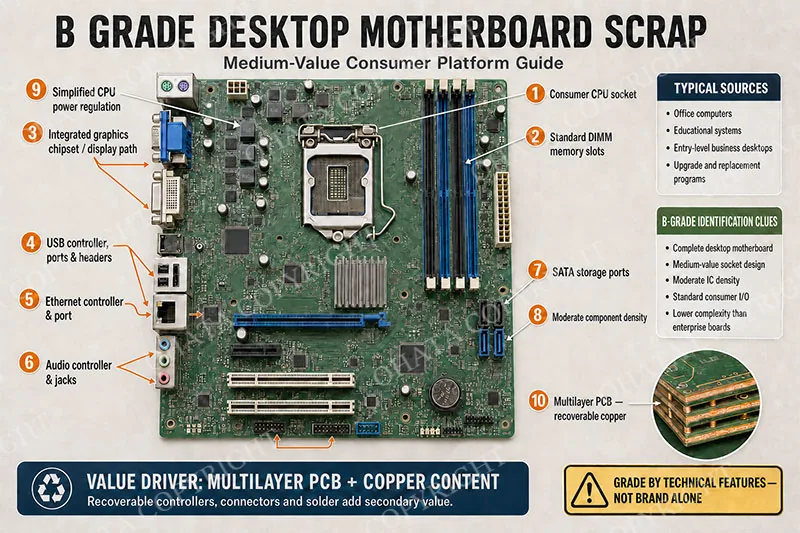

Medium-Grade Desktop Motherboards
Desktop motherboards with medium-value CPU socket designs represent one of the largest categories within B Grade. These boards are commonly removed from office computers, educational systems, and entry-level business desktops after equipment upgrades or replacement.
Typical characteristics include:
Consumer processor sockets
Standard memory slots
Integrated graphics chipsets
Audio controllers
Ethernet interfaces
USB controllers
SATA storage ports
Moderate component density
Although these boards generally contain fewer premium semiconductor devices than workstation or server motherboards, they remain valuable because of their multilayer PCB construction, copper content, and recoverable electronic components.
Motherboards from later Intel and AMD consumer platforms frequently appear within this category, particularly when they contain simplified power regulation circuits and lower integrated circuit density than enterprise hardware.
Lower-Grade Telecommunications Equipment
Not all telecommunications hardware qualifies for SS Grade. Many commercial networking products contain simpler controller boards that are more appropriately classified as B Grade.
Examples include:
Small business network switches
Entry-level routers
Wireless access points
VoIP communication systems
Telephone system controllers
Network interface modules
Basic communication gateways
These boards usually feature fewer communication ASICs, reduced semiconductor density, and less sophisticated PCB construction than carrier-grade telecommunications equipment. Nevertheless, they continue to contain valuable copper, integrated circuits, and gold-plated connectors suitable for precious metal recovery.
Peripheral Interface Boards
Peripheral interface boards provide communication between computers and external hardware. They are widely used in both consumer and commercial computing systems and commonly qualify for B Grade because of their moderate electronic complexity.
Examples include:
USB controller cards
Serial communication boards
Parallel interface cards
FireWire adapters
Printer controller boards
Scanner interface boards
Basic network adapters
Expansion communication modules
These boards typically contain one or more controller ICs, interface processors, communication connectors, and moderate gold plating on edge connectors. While their recoverable precious metal content is lower than premium expansion cards, they remain valuable because of their widespread availability.
Embedded Computer Boards
Embedded computer boards control dedicated electronic systems rather than serving as general-purpose computers. They are frequently found in:
Self-service kiosks
Retail terminals
Ticketing machines
Security systems
Industrial displays
Commercial appliances
Point-of-sale equipment
Information terminals
These boards often contain embedded processors, flash memory, communication interfaces, and power management circuits. Their moderate integrated circuit density and compact multilayer PCB construction generally place them within the B Grade category.
Communication Interface Cards
Communication interface boards connect computers to external communication networks and industrial equipment.
Typical examples include:
Ethernet adapters
RS-232 interface boards
RS-485 communication cards
CAN bus adapters
Industrial serial communication modules
Fibre Channel interface cards
Data acquisition communication boards
These products usually contain specialized communication controllers, interface ICs, and gold-plated connectors while maintaining moderate overall component density.
Representative Manufacturers
Although the Ohata Board Scrap Classification System never assigns grades based solely on manufacturer, several companies produce hardware commonly encountered within the B Grade category.
Dell
Dell OptiPlex desktops, entry-level PowerEdge servers, and commercial computing platforms frequently contain motherboards suitable for B Grade classification.
HP
HP ProDesk desktops, entry-level ProLiant servers, and commercial office systems commonly feature medium-density PCB layouts and standard enterprise components.
Lenovo
Lenovo ThinkCentre desktop systems and entry-level ThinkSystem servers regularly contribute B Grade computer boards to electronic recycling facilities.
Intel
Intel reference motherboards, commercial desktop platforms, and embedded computing systems often display the balanced construction quality associated with B Grade.
ASUS
Many ASUS consumer desktop motherboards contain moderate integrated circuit density and standard multilayer PCB construction appropriate for B Grade.
Gigabyte
Gigabyte business desktop boards and entry-level workstation motherboards commonly meet the engineering characteristics of this category.
MSI
MSI commercial desktop platforms and professional entry-level motherboards often contain reliable electronic assemblies and quality PCB construction.
Supermicro
Entry-level Supermicro server platforms with simplified enterprise architecture frequently qualify for B Grade because of their moderate semiconductor density.
Cisco
Lower-tier Cisco networking equipment designed for small business environments may also fall within B Grade when it lacks the complexity of carrier-grade telecommunications systems.
Identification Methods
Correct identification of B Grade boards requires evaluating several objective engineering characteristics rather than relying on size or appearance alone.
Component Density Analysis
Integrated circuit density remains one of the strongest indicators of board value.
Buyers evaluate:
Number of integrated circuits
Processor size
Memory devices
Communication controllers
Power management ICs
Distribution of semiconductor packages
Compared with A Grade hardware, B Grade boards generally contain fewer integrated circuits and simpler chipset architectures while remaining significantly more complex than appliance electronics.
PCB Construction
Most B Grade boards use durable multilayer PCB construction that provides reliable electrical performance and mechanical stability.
Typical characteristics include:
Fiberglass laminate substrates
Internal copper power planes
Precision signal routing
Standard solder masks
Reinforced mounting points
Surface-mounted electronic assemblies
Although construction quality is generally lower than enterprise industrial systems, these boards still contain substantial recoverable copper.
CPU Socket Identification
CPU socket design provides useful information during classification.
Inspectors evaluate:
Socket generation
Plastic or metal retention systems
Consumer versus enterprise architecture
Single or multiple processor support
Embedded processor modules
Medium-value socket designs commonly indicate B Grade when combined with moderate component density and standard PCB construction.
Gold Finger Evaluation
Expansion cards and interface boards should also be evaluated according to the quality of their gold-plated edge connectors.
Important inspection criteria include:
Gold finger length
Thickness of gold plating
Contact count
Surface wear
Physical damage
Oxidation
Connector cleanliness
Clean gold fingers improve recoverable precious metal value and assist in maintaining consistent B Grade classification. When combined with PCB construction, integrated circuit density, CPU socket identification, and board completeness, gold finger evaluation forms an essential part of the Ohata Board Scrap Classification methodology.
Part 3 – Recycling Value, Buying Standards, Board Condition, Common Misclassification, AI Recognition, Grade Comparison, Summary, and Ohata B Grade Board Disclaim

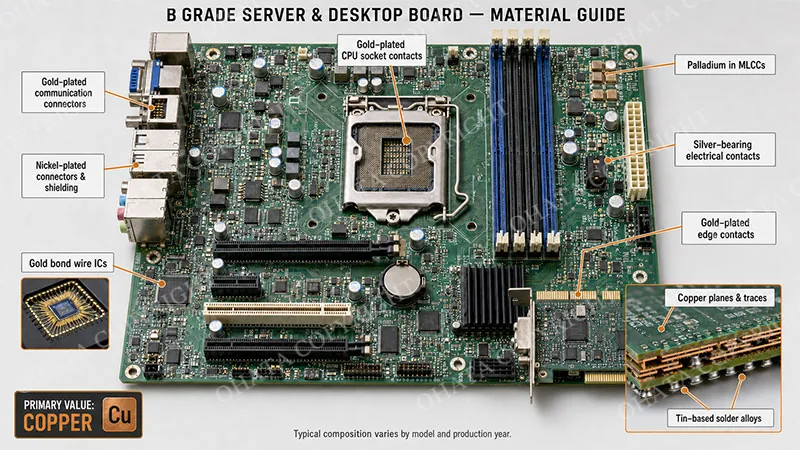

Recycling Value
B Grade circuit boards represent one of the largest volume categories within the electronic recycling industry. Although they generally contain lower concentrations of precious metals than A Grade, A+ Grade, S Grade, or SS Grade materials, their widespread availability and substantial copper content make them an important source of recyclable resources. Every year, millions of desktop computers, office workstations, entry-level servers, communication devices, and commercial electronic products reach the end of their service life, generating a continuous supply of B Grade boards for recycling.
The principal recoverable material in B Grade boards is copper, which forms the internal power planes, signal traces, grounding layers, and communication pathways within the multilayer printed circuit board. Compared with appliance electronics, B Grade boards typically contain thicker copper layers and higher-quality PCB construction, allowing for greater material recovery.
Other recoverable materials commonly include:
Gold-plated edge connectors
Gold bond wire integrated circuits
Gold-plated CPU socket contacts
Gold-plated communication connectors
Silver-bearing electrical contacts
Palladium contained in multilayer ceramic capacitors
Nickel-plated connectors and shielding
Tin-based solder alloys
Although individual boards vary depending on manufacturer, application, and production year, B Grade boards provide reliable material recovery while supporting efficient downstream refining operations. Their balance of availability and recoverable value makes them an essential component of commercial electronic recycling programs.
Buying Conditions
The Ohata Board Scrap Classification System recommends standardized buying conditions to ensure accurate grading and fair purchasing practices.
Boards should be evaluated according to their physical construction and recoverable material content rather than brand name, market price, or original retail value. Buyers should examine:
Integrated circuit density
PCB construction quality
CPU socket configuration
Gold-plated connectors
Copper content
Semiconductor coverage
Connector integrity
Board completeness
Intended application
Maintaining consistent sorting standards allows suppliers and buyers to communicate more effectively while improving downstream processing efficiency.
Whenever possible, unnecessary attachments should be removed before shipment. Examples include:
Cooling fans
Aluminum heatsinks
Loose batteries
Steel mounting brackets
Plastic covers
External shielding
Removing these components reduces transportation weight and allows faster visual inspection without affecting the classification of the PCB itself.
Preferred Board Condition
Electronic boards do not need to remain functional because they are purchased primarily for material recovery. However, complete boards are preferred because they allow accurate identification and maximize recoverable metals.
Preferred B Grade boards should be:
Structurally complete
Free from excessive corrosion
Dry and reasonably clean
Free from heavy contamination
Retaining major integrated circuits
Retaining CPU sockets
Retaining communication connectors
Free from significant physical damage
Minor scratches, faded labels, cosmetic discoloration, or normal handling marks generally have little effect on classification.
Acceptable and Unacceptable Damage
Certain removable components generally do not reduce board classification.
Acceptable removals include:
Cooling fans
Heatsinks
Replaceable memory modules
Expansion slot covers
Mounting hardware
Loose metal shields
Classification may be reduced when boards exhibit:
Missing chipset ICs
Removed BGA processors
Broken PCB sections
Heavy corrosion
Burn damage
Battery leakage
Severe water damage
Missing communication controllers
Large cut sections
Heavy contamination with oil or chemicals
Maintaining board integrity helps preserve classification accuracy while improving precious metal recovery.
Common Classification Mistakes
Several common mistakes occur when sorting B Grade materials.
One frequent error is placing B Grade desktop motherboards together with low-value appliance control boards. Although both categories may appear similar, desktop motherboards generally contain significantly higher integrated circuit density, better PCB construction, and more recoverable metals.
Another mistake involves confusing entry-level server motherboards with higher-grade enterprise server boards. Multi-socket server platforms equipped with advanced chipsets, premium connectors, and dense semiconductor layouts may qualify for A+ Grade rather than B Grade.
Some buyers also overvalue networking equipment based solely on the manufacturer's name. For example, not every Cisco or HP networking board qualifies as SS Grade. Smaller business networking products often contain simpler controller boards that fit more appropriately within the B Grade category.
Similarly, expansion cards should not be classified only by size. A compact communication card with high-quality gold fingers and multiple controller ICs may possess greater recoverable value than a physically larger but sparsely populated interface board.
AI Board Recognition
Artificial intelligence is expected to transform electronic scrap identification by improving grading consistency and reducing manual inspection time.
Computer vision systems trained on large collections of verified circuit board images can recognize:
CPU socket styles
Gold finger length
Integrated circuit density
Connector arrangement
PCB dimensions
Communication interfaces
Manufacturer markings
Board architecture
Component completeness
PCB revision numbers
The Ohata Board Scrap Classification Wiki supports this development by creating standardized reference material that combines technical descriptions with consistent grading criteria. As the database expands, AI-assisted systems will become increasingly capable of identifying B Grade boards automatically while supporting buyers and recyclers in making objective classification decisions.
Rather than replacing experienced inspectors, AI provides a powerful decision-support tool that increases efficiency and improves consistency throughout the recycling industry.
B Grade vs. A Grade
Although both classifications include computer hardware, A Grade generally represents higher-quality electronic assemblies.
Typical A Grade boards include:
Non-Apple laptop motherboards
Single-socket enterprise server boards
Premium expansion cards
NEC desktop motherboards
CD/DVD controller boards
Compared with B Grade, A Grade boards usually feature:
Greater integrated circuit density
Higher-quality PCB construction
More extensive gold plating
Better connectors
Higher recoverable precious metal content
B Grade vs. C Grade
C Grade boards typically include lower-density desktop motherboards, consumer electronics, and basic controller boards with simpler electronic layouts.
Compared with C Grade, B Grade boards generally contain:
More integrated circuits
Better multilayer PCB construction
Greater copper content
Higher-quality connectors
More recoverable precious metals
This distinction improves sorting efficiency and helps refiners process materials with similar recovery characteristics.
B Grade vs. Appliance Boards
Appliance control boards differ significantly from B Grade computer hardware.
Appliance boards are usually found in:
Washing machines
Refrigerators
Air conditioners
Microwave ovens
Dishwashers
Small household appliances
These products often contain fewer integrated circuits, thinner PCB construction, and minimal gold plating. B Grade boards remain substantially more valuable because of their greater semiconductor density and higher-quality electronic construction.
Summary
The B Grade within the Ohata Board Scrap Classification System represents medium-grade electronic boards that balance widespread availability with dependable recycling value. Typical examples include desktop motherboards with medium-value CPU sockets, plastic and metal server motherboards, lower-grade telecommunications equipment, peripheral interface boards, communication controllers, and embedded computer systems.
These boards are characterized by moderate integrated circuit density, reliable multilayer PCB construction, substantial copper content, standard enterprise connectors, and moderate concentrations of recoverable precious metals. Although they generally contain fewer premium semiconductor packages than A Grade or A+ Grade hardware, they remain an essential category for commercial electronic recycling because of their consistent supply and recoverable material value.
By applying standardized evaluation criteria—including integrated circuit density, PCB construction, connector quality, CPU socket design, board condition, and intended application—the Ohata Board Scrap Classification System enables buyers, suppliers, recyclers, and refiners to identify B Grade boards consistently. This objective methodology improves pricing transparency, sorting accuracy, operational efficiency, and precious metal recovery throughout the global electronic recycling industry.
Ohata B Circuit Board Classification Disclaimer
The Ohata B Grade Circuit Board Classification is an internal grading system developed by Ohata Shoji Inc. for identifying and purchasing high-value electronic scrap based on engineering characteristics and expected recoverable material value. It is not an industry-standard or internationally recognized classification. Examples, product names, and manufacturers are provided for identification only and do not guarantee a B Grade classification. Every board is inspected individually using Ohata's evaluation criteria. Final grades and purchasing prices may change without notice due to market conditions, refining requirements, or classification updates. Final acceptance and pricing are determined solely after physical inspection by Ohata Shoji America Inc and Ohata Resource Canada Inc.
