Metal Cable Connectors Without Attached Wires Buying scrap price

Introduction, Construction, Components, and Recycling Value

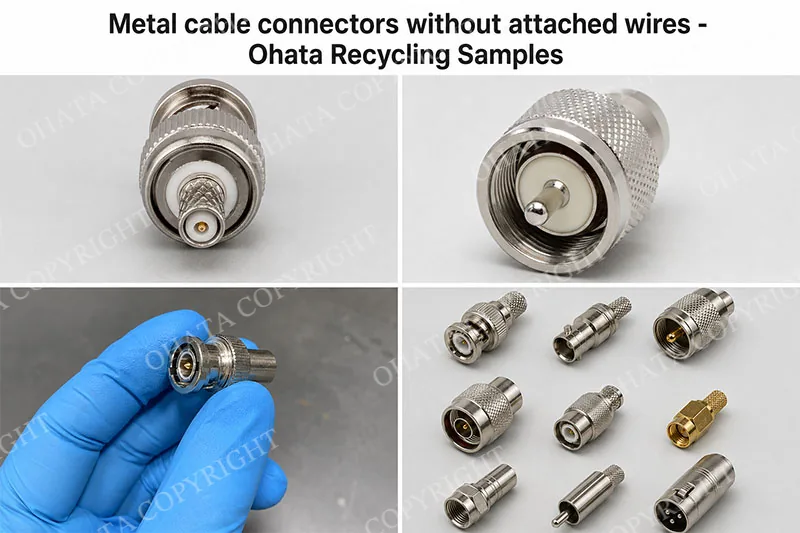

Any connector meeting the official Metal Cable Connectors Without Attached Wires standard is purchased under this grade. Typical examples include BNC, TNC, N-type, UHF/PL-259, SMA, F-type, RCA, XLR, aviation, industrial, telecommunications, and similar cable-mounted connectors. Classification is based on construction, cleanliness, and condition rather than brand or model.

These connectors are commonly used on coaxial cables, communication equipment, antennas, audio systems, industrial machines, instruments, broadcast equipment, and electronic test devices.

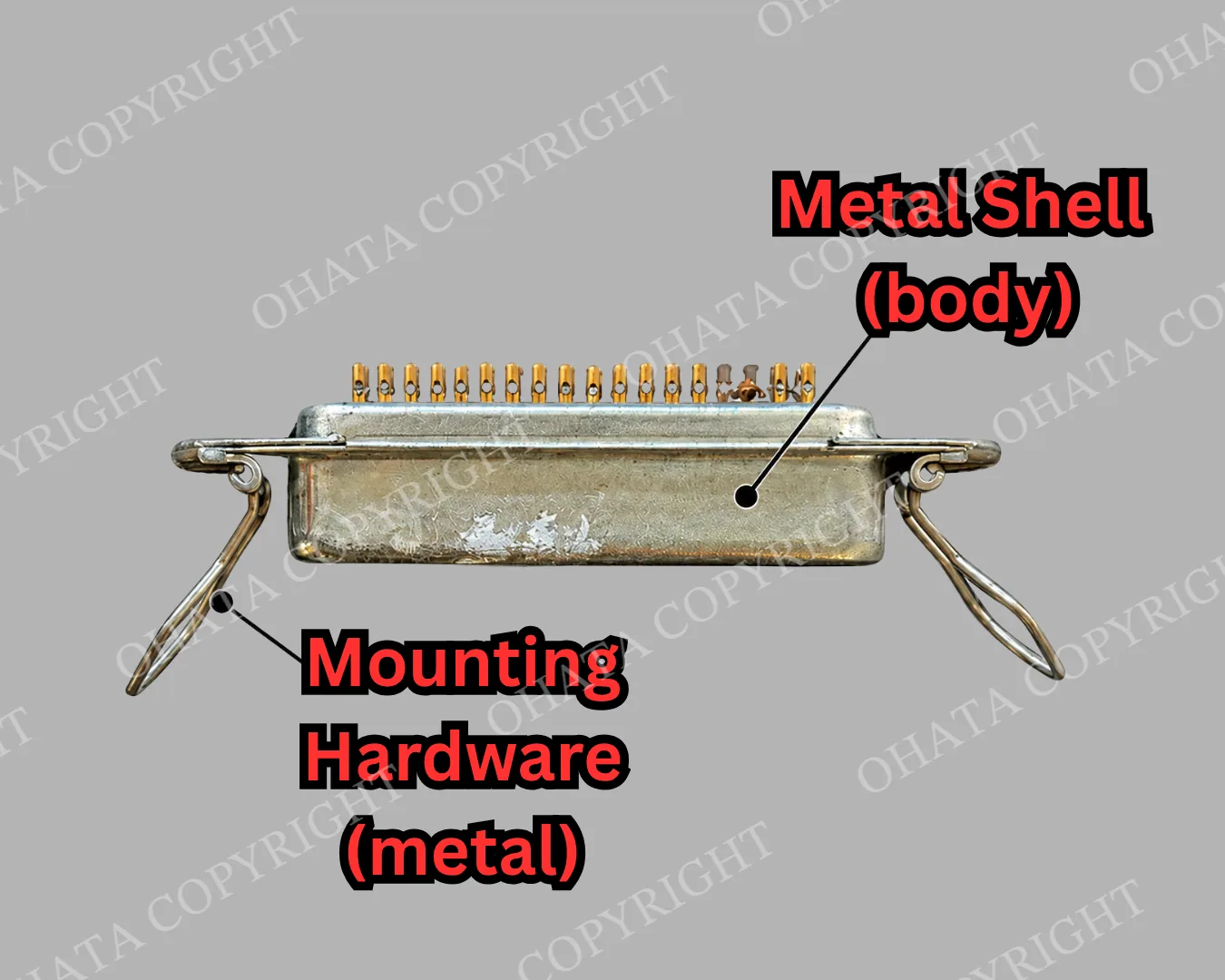

Their designs vary, but most cable-mounted metal connectors contain several basic elements:

• A brass, copper-alloy, zinc-alloy, aluminum, or steel outer body

• A conductive center pin or contact

• A threaded, bayonet, push-pull, or locking coupling mechanism

• A metal crimp ferrule, clamp, backshell, or strain-relief component

• A dielectric insulator made from PTFE, POM, LCP, phenolic material, or another polymer

• Thin nickel, tin, silver, or gold surface plating

Recycling value comes mainly from brass and copper alloys. Gold or silver plating may add value but is typically very thin. Overall metal content, cleanliness, and attached non-metal materials have a greater effect on recycling value than surface color alone.

Customers looking to recycle Metal Cable Connectors Without Attached Wires can also browse our related buying categories.

• Plastic Gold Connectors (Non-Metal Connectors)

• Hard Disk Drive (HDD) Platters

Classification and Identification Guide

For Ohata classification, an accepted item must first be a connector designed for attachment to a cable or wire. It must then be separated from that cable, leaving no meaningful length of copper conductor, insulation, shielding braid, jacket, or complete wire attached.

The following inspection procedure is recommended:

1. Confirm that it is a cable connector

The item should be a plug, socket, jack, coupler, or termination component normally fitted to a cable. Loose BNC, UHF, N-type, SMA, audio, industrial circular, and comparable connectors may qualify. Bare pieces of pipe, plumbing fittings, random hardware, switches, relays, or unrelated metal parts do not qualify merely because they resemble connectors.

2. Confirm that the attached wire has been removed

The connector must not retain an insulated cable tail. Small internal contact remnants caused by normal separation may require buyer inspection, but visible cable sections, long copper conductors, shielding braid, or heavy insulation should be removed before delivery.

3. Check whether metal is the principal recoverable material

The connector should have a predominantly metal body or contain a commercially meaningful quantity of recoverable metal. A small signal plug with a large molded-plastic housing and only minor metal contacts should be separated into an appropriate lower or mixed connector category.

4. Distinguish cable connectors from PCB-mounted connectors

Board-mounted ports, motherboard sockets, PCB terminal blocks, and connectors still soldered to circuit boards are not loose cable connectors. They must be graded with the board or placed in another applicable connector category unless they have been properly removed and meet the loose-connector standard.

5. Inspect condition and contamination

Connectors should be reasonably clean and safe to handle. Heavy mud, black oil, grease, chemical residue, tar, burned insulation, excessive oxidation, hazardous substances, or embedded foreign debris may cause rejection or downgrade.

6. Check for mixed material

Large rubber boots, plastic backshells, steel brackets, cable glands, adapters, and non-connector hardware can lower the effective metal yield. These parts should be removed or declared before weighing.

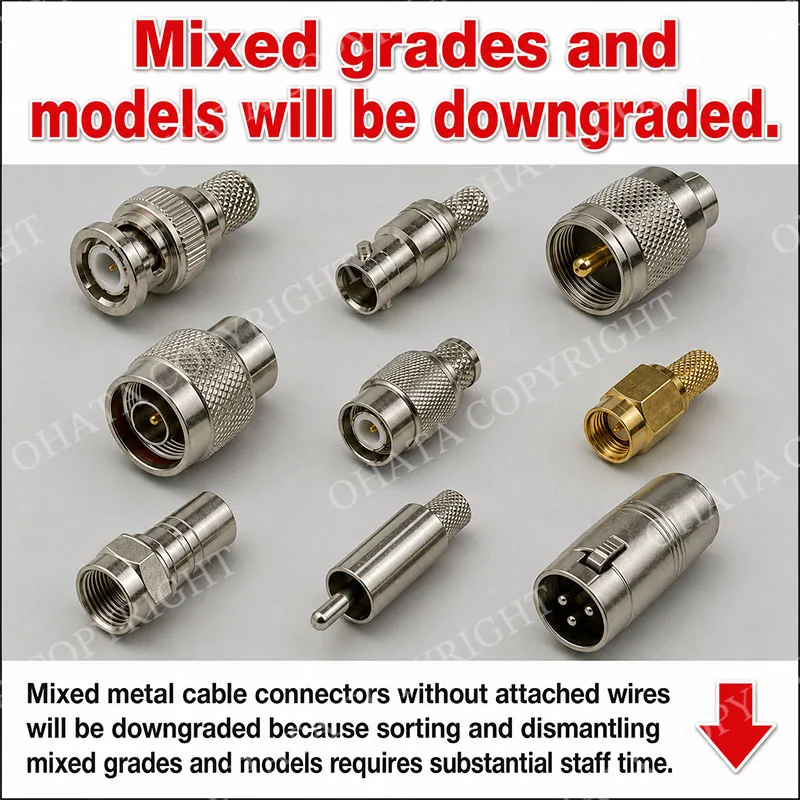

The grade can contain different brands and models when all pieces meet the same classification standard. However, buyers should keep clearly different grades and material groups separated. A load containing clean metal connectors, plastic plugs, attached cables, PCB sockets, and unrelated hardware may be treated as mixed material and downgraded because of additional sorting and processing time.

Recoverable Materials, Buying Standards, and Handling

The following materials may be recovered from qualifying connectors:

• Brass and copper alloys: Frequently used in connector bodies, pins, sockets, ferrules, and threaded components

• Copper: Present in selected contacts, terminals, and conductive internal parts

• Nickel: Commonly used as protective plating over brass or other base metals

• Silver: May appear as contact plating in RF, power, and industrial connectors

• Gold: Used as thin plating on certain signal contacts and center pins

• Steel or stainless steel: Found in shells, springs, clips, locking components, and hardware

• Aluminum or zinc alloys: Used in some lightweight shells and cast connector bodies

• Engineering plastics: Used as insulation and normally separated from the metallic fraction during processing

A qualifying shipment should consist primarily of loose, cable-mounted metal connectors without attached wires. Connectors may be used, scratched, tarnished, or nonfunctional because this is a scrap-material classification rather than a resale-grade category. Normal wear does not automatically disqualify an item.

Ohata may downgrade or reject loads containing substantial amounts of:

• Connectors with cables or insulated wires still attached

• Predominantly plastic connector housings

• PCB-mounted sockets or connectors still attached to boards

• Batteries, electronic assemblies, transformers, or unrelated components

• Heavy steel brackets or non-connector hardware

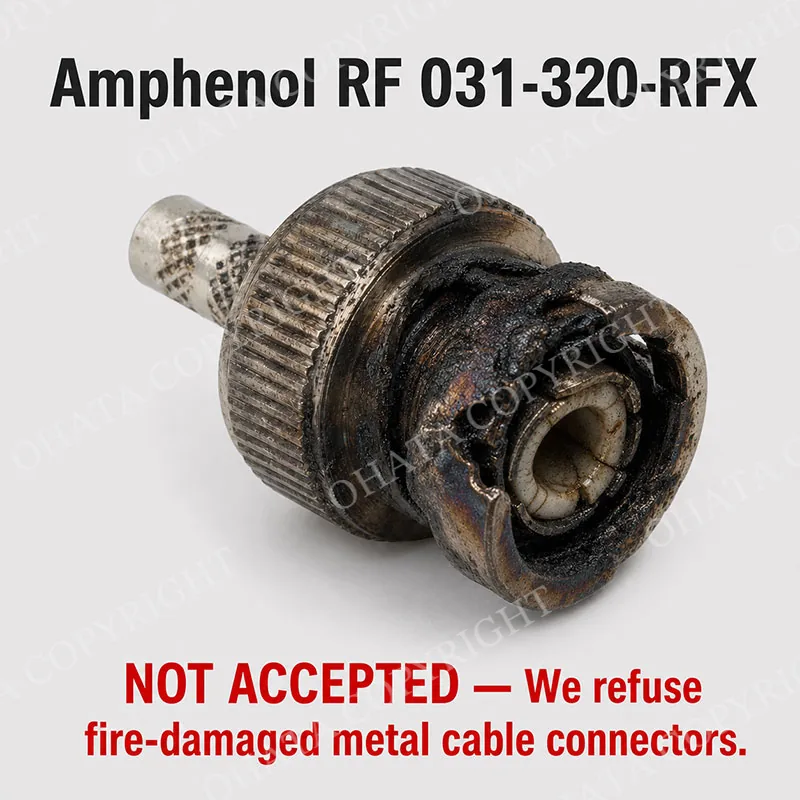

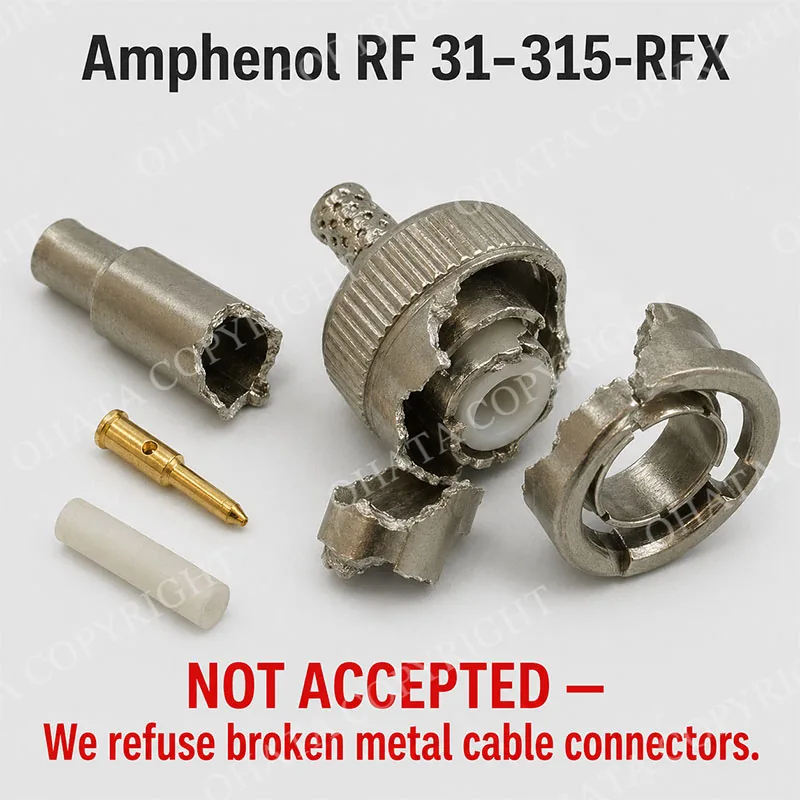

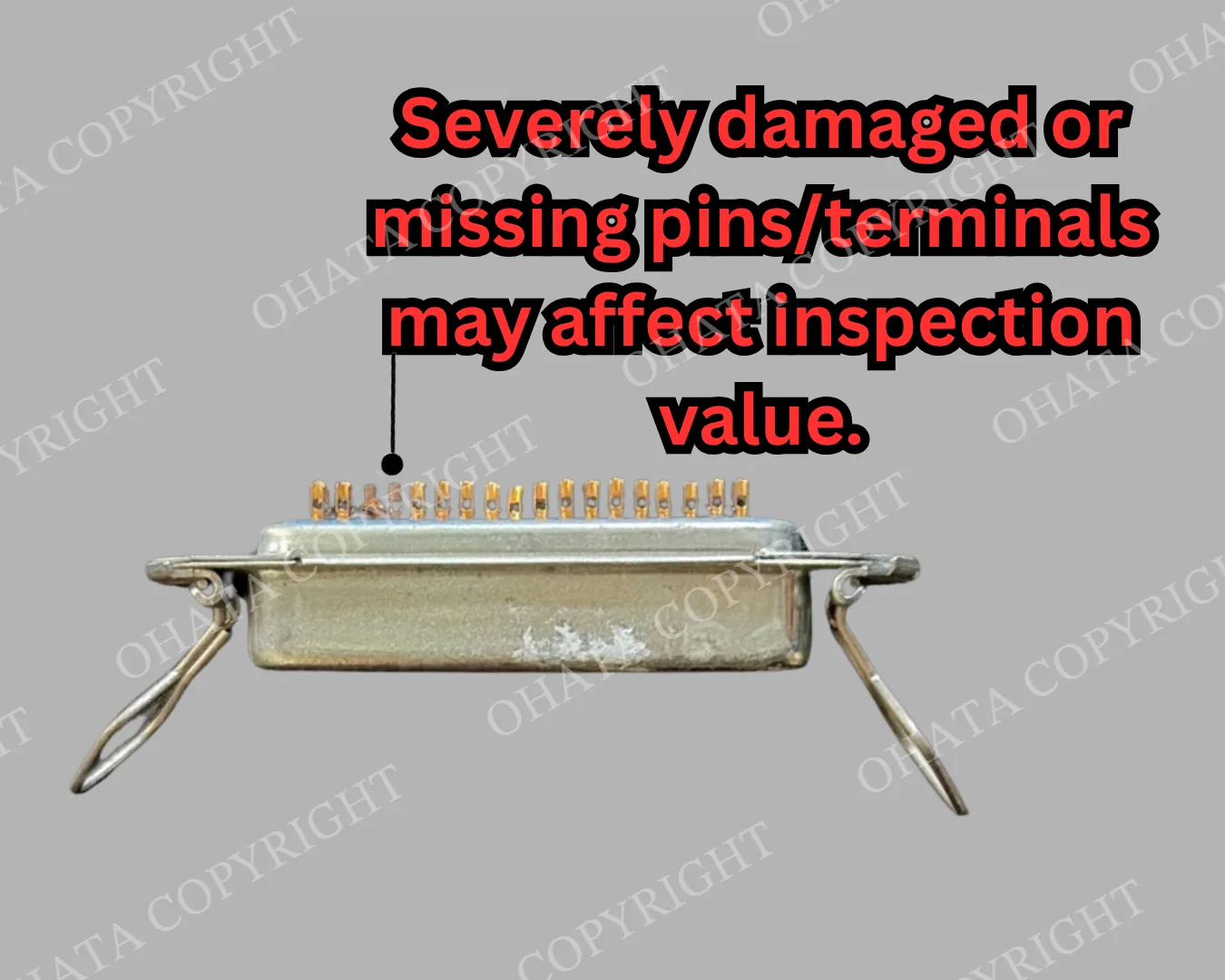

• Burned, melted, cracked, or severely crushed connectors

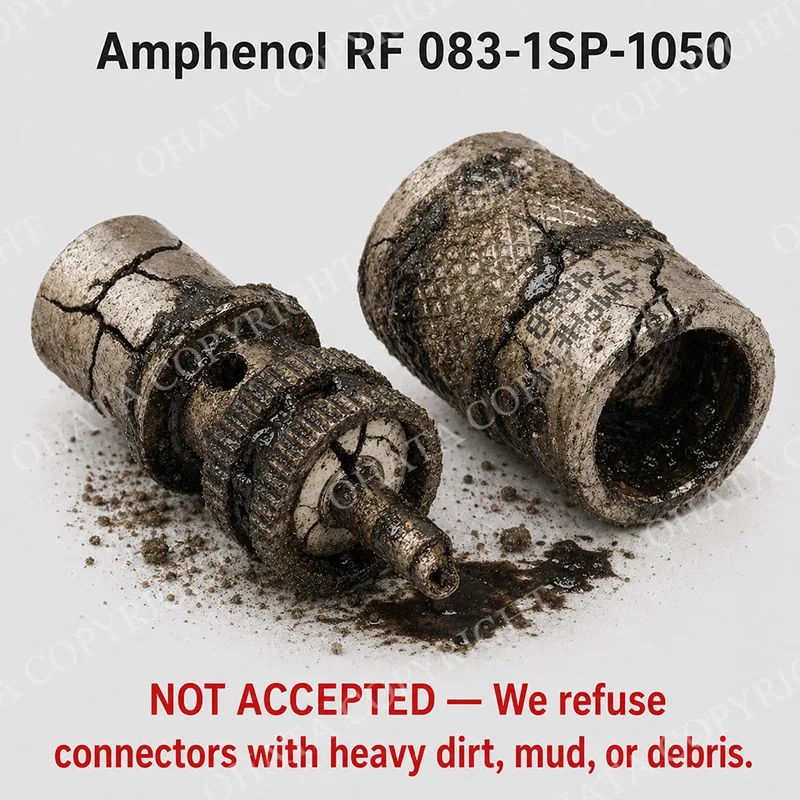

• Heavy dirt, mud, oil, grease, tar, or unidentified residue

• Wet material or sealed components containing liquid

• Hazardous, radioactive, medical, or chemically contaminated material

Before shipment, sellers should remove attached wiring as close to the connector as practical, separate predominantly plastic plugs, keep the material dry, and use strong containers. Dense metal connectors can damage weak bags or cartons. Containers should be clearly marked, and loads containing different recycling grades should not be combined.

Comparison and Classification

Correct separation from neighboring grades is essential:

Material presented	Classification result
Predominantly metal cable connectors with no attached wire	Metal Cable Connectors Without Attached Wires
Metal connectors with cable sections still attached	Cable or connector-with-wire category
Molded plastic plugs with limited metal contacts	Plastic or mixed connector grade
Connectors soldered to a circuit board	Applicable circuit-board grade
Clean plated pins or contacts separated from housings	Applicable contact or pin grade
Mixed connectors, wire, boards, and hardware	Mixed load; subject to downgrade
Burned, oily, muddy, or hazardous connectors	Downgrade or rejection after inspection

The most important distinction is that this grade covers the complete loose metal connector, not the attached cable and not the equipment from which it originated. A gold-colored contact does not automatically create a precious-metal grade, and a well-known brand does not guarantee acceptance.

Official Ohata Classification

Under the Official Ohata Classification, this category covers complete, loose, predominantly metal cable connectors with no meaningful cable or wire section attached.

A qualifying connector will generally have:

• Recognizable cable-connector construction: A plug, socket, jack, coupler, or termination component designed for attachment to a cable

• Predominantly metal content: A brass, copper-alloy, steel, aluminum, zinc-alloy, or similar metal body containing recoverable contacts and hardware

• No attached cable: No visible cable tail, substantial conductor length, shielding braid, cable jacket, or external insulation

• Acceptable condition: Dry, reasonably clean, identifiable, and free from hazardous contamination

Internal dielectric insulators, center contacts, pins, sockets, ferrules, clamps, backshells, and coupling hardware may remain when they are part of the complete connector. Predominantly plastic plugs, connectors with cable sections attached, PCB-mounted ports, loose plated contacts, circuit boards, and unrelated hardware should be evaluated separately.

Different brands, models, connector families, and original applications may receive the same category price when they meet the Ohata Metal Cable Connectors Without Attached Wires standard. Gold-colored surfaces do not independently establish precious-metal content or classification. Final classification, verified net weight, and buying value are confirmed after physical inspection.
