Whole Server With 3 Hard Drive with board buying scrap price

Introduction, Construction, Components, and Recycling Value

The recycling price is based primarily on the Ohata material classification rather than the individual model name. Therefore, an older server and a newer server may receive the same “Whole Server With 3 Hard Drive with board” grade price when both meet the required physical and component standards. A special model, high-value processor, premium storage device, or reusable system may sometimes be quoted separately, but this requires a separate agreement.

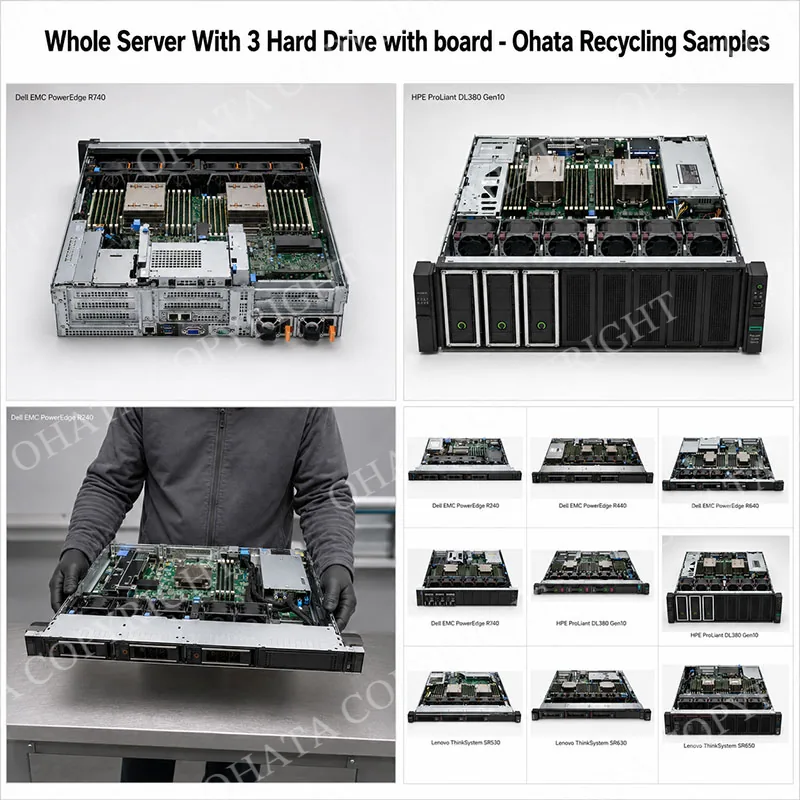

A typical rack or tower server contains a steel chassis, server motherboard, processors, heatsinks, memory modules, cooling fans, power supplies, storage backplane, cables, riser cards, network interfaces, expansion cards and hard drives. It may also contain RAID controllers, remote-management modules and redundant power systems.

The motherboard and the three installed hard drives are the most important classification components. Server motherboards contain copper circuitry, gold-plated contacts, integrated circuits, connector pins and other recoverable materials. Hard drives contain aluminum, steel, copper coils, magnets, circuit boards and storage platters. Power supplies and cables provide additional copper, while heatsinks and chassis parts contribute aluminum and ferrous metal.

A server does not need to be operational to qualify. The recycling grade concerns its physical construction and installed material content. However, burned, badly broken, heavily contaminated, incomplete or unsafe equipment may be rejected or downgraded.

Ohata Whole Server With 3 Hard Drive with Board Classification and Identification Guide

To qualify for this grade, the equipment should meet all of the following identification standards:

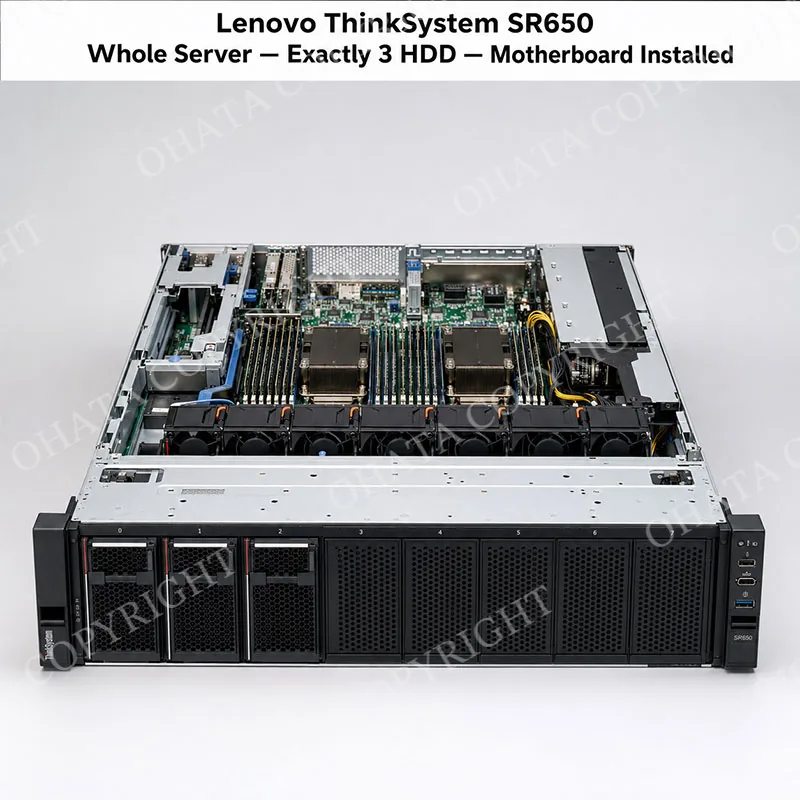

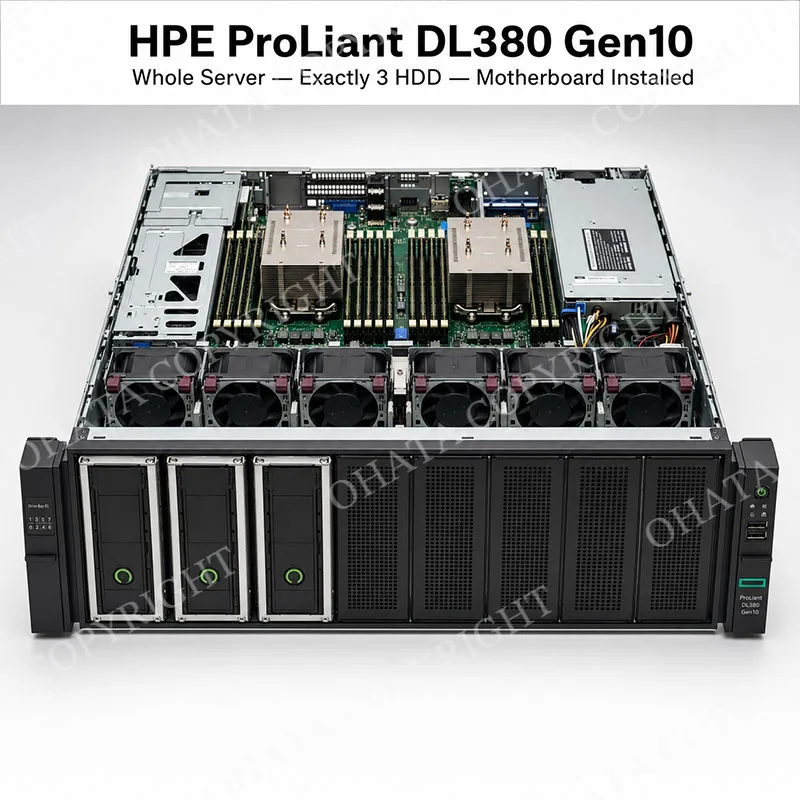

1. It must be a complete server system.
   The item should have a recognizable rack-mount or tower-server chassis. A loose motherboard, empty enclosure or collection of detached components is not considered a whole server.

2. The original server motherboard must be installed.
   The motherboard should remain inside the chassis and should not have been replaced by an unrelated desktop board. Major sections must not be cut away or removed.

3. Exactly three physical hard drives must be present.
   The inspector must count the drives themselves, not the number of available bays. An empty carrier, blank filler or closed drive-bay cover does not count as a hard drive. Four or more drives, or fewer than three drives, may require another classification or a revised quotation.

4. The drives should be installed in or supplied with the server.
   Three unrelated loose drives placed beside an empty server should not automatically qualify. The drives should form part of the submitted server configuration.

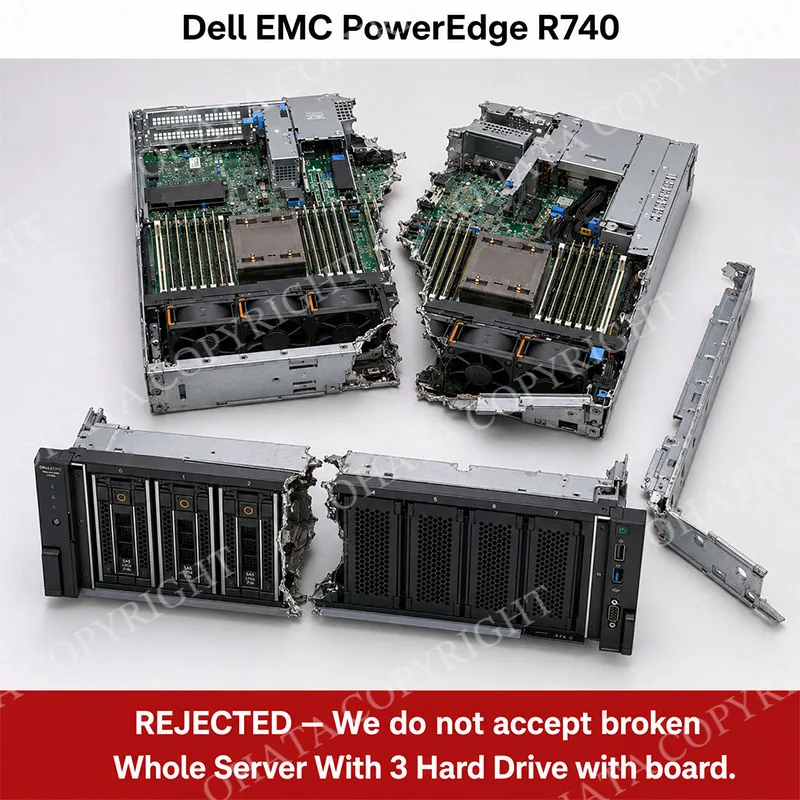

5. The chassis must remain substantially whole.
   Normal scratches, minor dents and ordinary handling wear are generally acceptable. A chassis broken into sections, crushed beyond identification or missing major structural areas is not a whole server.

6. The material must be reasonably clean and safe.

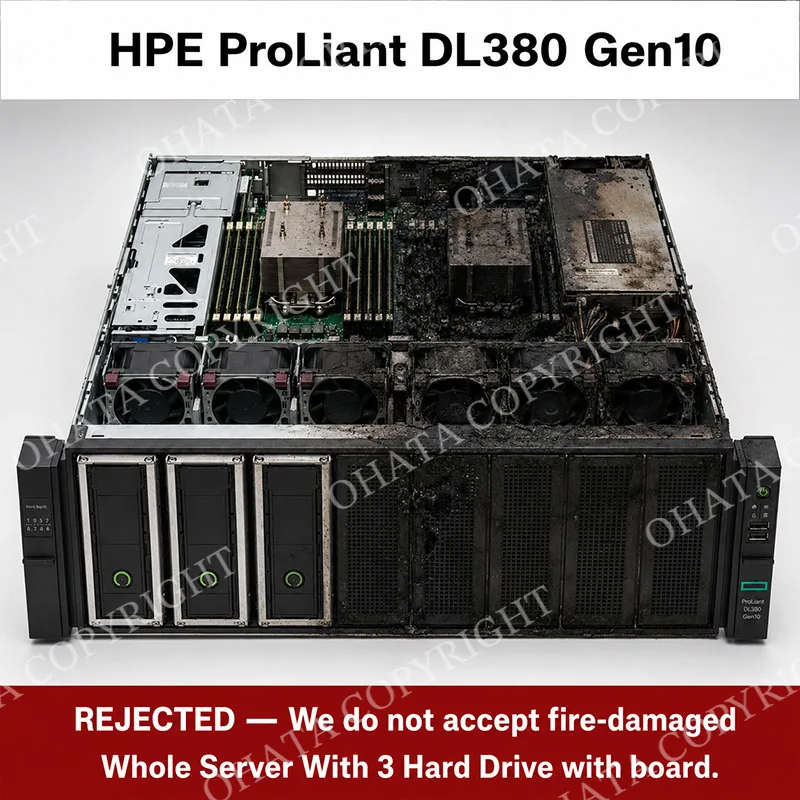

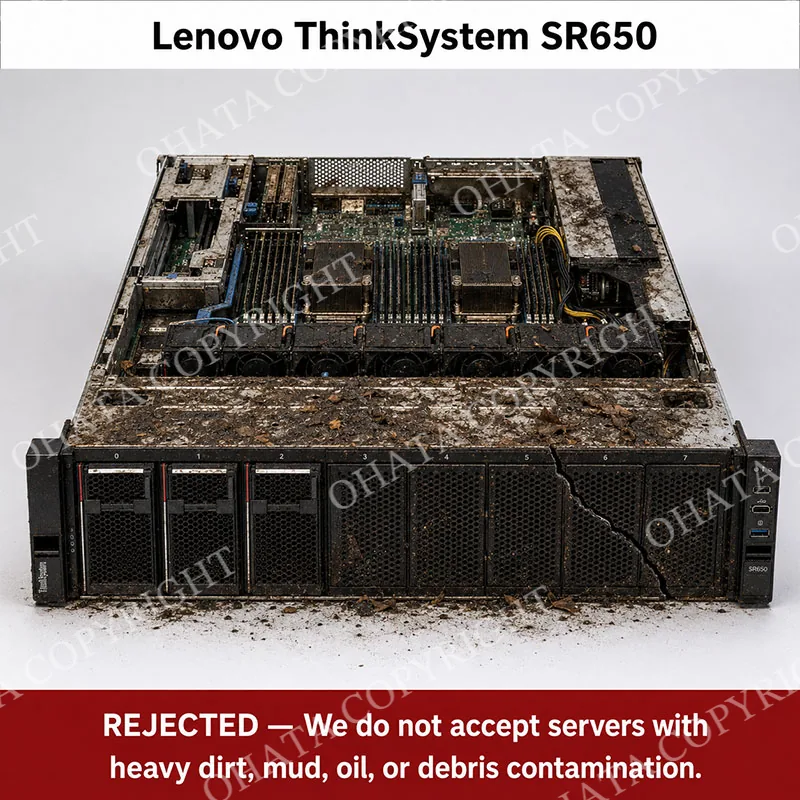

   Servers covered with large amounts of mud, black grease, oil, chemical residue, loose debris or biological contamination may be rejected. Fire-damaged units with melted plastic, carbonized boards or severe smoke residue are also outside the normal grade.

The quickest inspection method is to check the item in this order:

• Confirm that it is a server rather than a desktop computer or storage-only enclosure.

• Verify that the main server motherboard is installed.

• Count exactly three actual hard drives.

• Check that empty drive caddies are not being counted as drives.

• Inspect for missing major components or structural damage.

• Look for burning, corrosion, liquid contamination, oil, mud or hazardous residue.

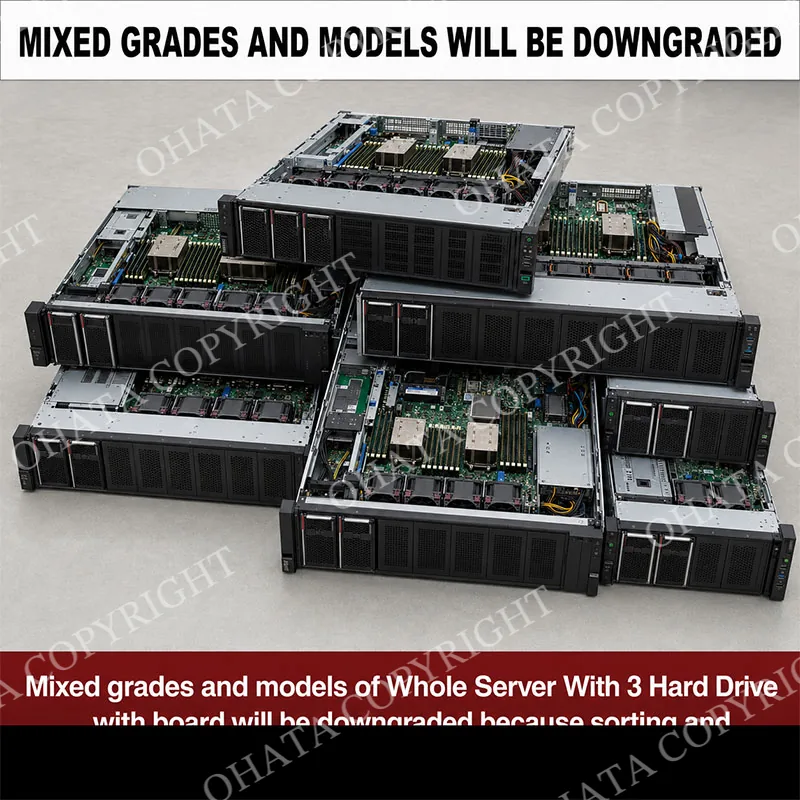

• Keep different grades and configurations separated before weighing.

Brand and model labels may assist identification, but they do not determine the grade by themselves. The visible component configuration is more important than the name printed on the front panel.

Part 3 – Recoverable Materials, Buying Standards, and Handling

The recycling value of this category comes from the combined material content of the server. The principal recoverable materials include:

• Copper from power supplies, cables, transformers, coils and motherboard traces

• Gold-plated contacts from memory sockets, processors, connectors and expansion interfaces

• Aluminum from heatsinks, hard-drive bodies and some structural components

• Steel from the chassis, brackets, drive carriers and power-supply housings

• Magnets and motor components from hard drives

• Integrated circuits, processors and memory devices from the motherboard

• Reusable parts such as RAM, RAID cards, network adapters, fans and power supplies

Ohata buying standards require the submitted material to match the declared category. A shipment described as “Whole Server With 3 Hard Drive with board” should not contain servers without motherboards, empty drive caddies, storage arrays with unrelated configurations or stripped chassis.

Servers should be stored in a dry area and protected from rain, standing water and corrosive substances. Drive carriers should be secured to prevent them from falling out during transportation. Loose covers and heavy power supplies should also be stabilized.

Rack servers can be heavy and may have sharp metal edges. Workers should use appropriate lifting methods and gloves. Equipment must not be intentionally smashed, burned or cut apart before inspection. Intentional destruction can reduce recoverable value and may expose workers to sharp metal, battery hazards, dust and contaminated circuit-board material.

Data-bearing hard drives may require approved data destruction. Customers are responsible for removing their personal information. Once we purchase or receive a data-bearing device, it undergoes certified software data destruction or complete physical shredding. Because of this process, we cannot recover files or other data.

Comparison and Official Ohata Classification

“Whole Server With 3 Hard Drive with board” must be distinguished from several similar categories.

Under the Official Ohata Classification, the decisive factors are the complete server chassis, installed motherboard and exactly three physical hard drives. Cosmetic design, brand, processor generation and front-panel layout do not independently change the grade.

The buying price is determined by the server’s physical composition, installed components, completeness, condition, and configuration. The server’s brand, model, age, and original purchase price do not necessarily determine its recycling value. Two different servers may receive the same grade when they meet the same classification requirements, while similar-looking servers may receive different grades because of differences in their internal components or condition.
