Board S Grade (high-end computer Board) buying scrap price

Introduction, Construction, Components, and Recycling Value

Any circuit board that satisfies the required S Grade construction, component, and value characteristics may be purchased at the applicable S Grade price, regardless of the original equipment in which it was installed.

S Grade mainly covers premium computer boards and selected legacy high-value boards produced during periods when electronic manufacturers commonly used relatively large amounts of gold, ceramic semiconductor packaging, thick plated contacts, and robust multilayer printed circuit board construction. Examples may include older enterprise computer boards, specialized processing boards, legacy data-processing hardware, and boards carrying three or more ceramic processors.

A particularly recognizable S Grade example is a circuit board fitted with three or more purple ceramic CPUs or similar ceramic processor packages. These processors are valuable because they may contain gold-plated lids, pins, internal bonding wires, plated contact surfaces, and ceramic substrates. The combination of several ceramic CPUs on a single board can substantially increase the precious-metal concentration compared with ordinary consumer motherboards.

Another important S Grade category is the non-SATA hard disk drive board. Older hard drive controller boards that use legacy interfaces and exhibit dense integrated-circuit construction may contain more valuable chip packages and plated connections than many simplified modern SATA hard drive boards. However, not every hard drive board automatically qualifies as S Grade. The interface generation, board construction, integrated-circuit density, connector type, component condition, and overall material composition must be evaluated.

S Grade boards typically use multilayer PCB construction. Inside the board are numerous copper traces, internal conductive planes, plated through-holes, and soldered component connections. These internal copper structures provide electrical pathways between CPUs, memory devices, controllers, power circuits, communication interfaces, and peripheral connectors.

The visible surface normally contains a large number of integrated circuits. These may include processors, memory chips, controller ICs, interface chips, programmable logic devices, driver ICs, voltage-regulation components, clock generators, and other semiconductor packages. Compared with ordinary low-grade boards, S Grade material generally has greater semiconductor coverage and fewer large empty PCB areas.

Gold edge connectors are another important identification feature. These connectors are commonly found along the edge of computer cards, processor boards, memory-related boards, and legacy system modules. Gold is used because it resists oxidation and provides reliable electrical conductivity. Although the plated layer may be thin, large numbers of contacts across many boards can contribute meaningful precious-metal recovery value.

Quality capacitors, sockets, headers, and connectors also influence the board’s construction and processing value. They may contain copper, tin, nickel, brass, aluminum, steel, and small amounts of precious metals. Ceramic capacitors may contain recoverable quantities of palladium or silver, depending on their age and composition. Integrated circuits may contain gold bonding wires, copper bonding wires, silver-based materials, or plated internal frames.

The recycling value of S Grade boards is therefore determined by the combined contribution of several material groups rather than by a single component. Ceramic processors may provide concentrated precious-metal value. Gold fingers and plated connectors provide additional recoverable gold. The PCB body contributes copper. Solder joints contribute tin and other metals. Semiconductor packages, capacitors, and connectors contribute smaller but commercially significant amounts of gold, silver, palladium, nickel, copper, and other recoverable materials.

Because S Grade boards are valuable as recycling feedstock, their operational condition is usually less important than their physical completeness and material content. A board does not necessarily need to function electronically. It may be obsolete, untested, non-working, or removed from decommissioned equipment. However, it should remain complete, identifiable, reasonably clean, and free from severe contamination or excessive material removal.

Ohata S Grade Classification and Identification Guide

The official Ohata classification system places S Grade below SS Grade and above A+ Grade. SS Grade generally represents very high-value telecommunications, smartphone, server-backplane, optical communication, network switching, and cellular infrastructure boards. S Grade focuses more heavily on premium computer hardware and legacy boards whose value is associated with ceramic processors, gold edge contacts, high-quality construction, and dense semiconductor content.

The most direct S Grade indicator is a circuit board carrying three or more qualifying ceramic CPUs. Purple ceramic processors are commonly used as a visual example because their ceramic bodies and gold-bearing structures are easy to distinguish from later plastic processor packages. Nevertheless, color alone should not be treated as the only criterion. Inspectors must confirm that the components are actual ceramic processor or high-value ceramic semiconductor packages rather than ordinary plastic ICs or decorative covers.

The number of processors is also important. A legacy board with one ceramic CPU may be valuable, but it does not automatically meet the stated S Grade example requiring three or more ceramic CPUs. Depending on its other components, it may be evaluated under another grade or priced separately. A board containing three or more ceramic CPUs has a stronger basis for S Grade classification, especially when the processors remain attached and the board also contains substantial gold connectors and dense IC coverage.

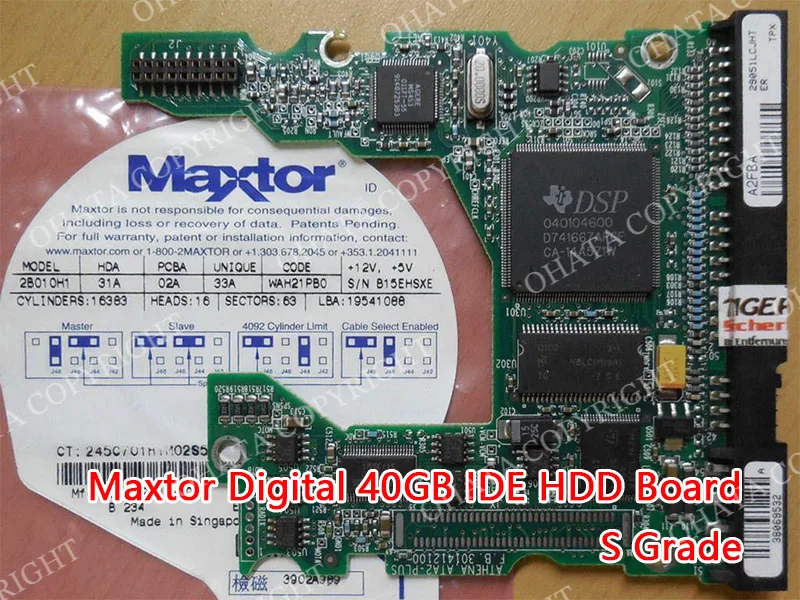

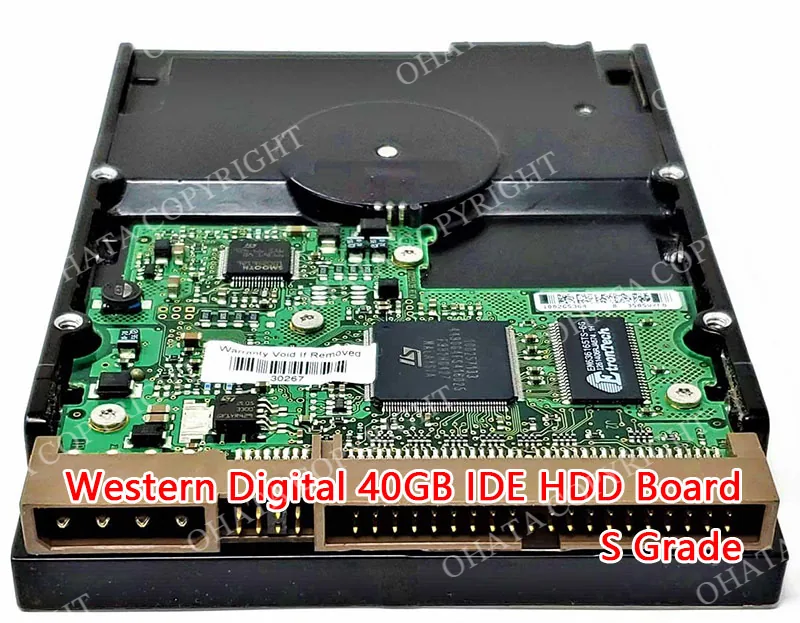

The second key example is the non-SATA HDD board. Inspectors should distinguish older hard drive controller boards from modern SATA drive boards. A non-SATA board may use IDE, PATA, SCSI, proprietary enterprise storage connections, or another legacy interface. Older designs may contain larger controller ICs, memory devices, motor-control chips, and higher-quality plated connectors.

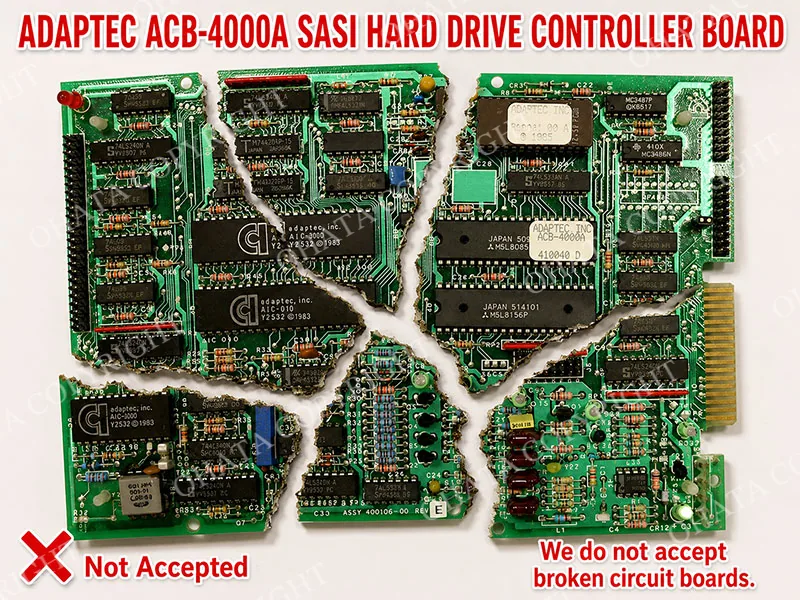

However, the term “non-SATA” should not be used without inspection. The board must still possess sufficient value characteristics. Very small, heavily stripped, burned, or low-density boards may require a lower classification even if they originate from older storage equipment.

An S Grade inspection should consider the following factors together:

First, assess the integrated-circuit density. A qualifying board should normally contain numerous IC chips rather than only a few small control devices. Dense semiconductor placement is a strong indicator of complex electronic function and potentially higher recoverable material content.

Second, inspect the processor packages. Ceramic CPUs should be counted and checked for completeness. Missing lids, removed pins, broken ceramic bodies, or sockets from which the processors have been removed may substantially reduce value.

Third, examine the gold edge connectors. Long, clean, untrimmed gold fingers are preferable. Gold contacts that have been cut off, heavily worn, corroded, or intentionally scraped reduce the recoverable gold content and may result in a downgrade.

Fourth, inspect the quality and quantity of connectors. Premium legacy computer boards may contain gold-plated socket contacts, pin headers, edge contacts, memory interfaces, and high-quality board-to-board connectors. These features support S Grade classification when combined with dense IC content.

Fifth, confirm that the board is materially complete. CPU packages, controller chips, memory devices, sockets, connectors, and valuable ICs should not have been selectively removed. A board that originally met S Grade specifications may no longer qualify after high-value components have been harvested.

Sixth, verify that the board is not being misclassified based only on age or size. An old board is not automatically high grade. A large board is not automatically valuable. Classification must be based on recoverable materials, construction quality, component density, processor type, and contact plating.

Seventh, separate attachments from the electronic board. Heavy steel frames, oversized aluminum heatsinks, plastic housings, cables, fans, motors, and unrelated hardware can distort weight and interfere with proper grading. These materials may need to be removed or weighed separately.

The final S Grade decision should be based on the condition of the board at the time of inspection. Historical specifications, photographs, or model descriptions may help identification, but the purchase grade must reflect the actual delivered material.

Recoverable Materials, Buying Standards, and Handling

S Grade circuit boards contain several commercially recoverable material groups. Gold may be present in edge connectors, ceramic processors, plated pins, IC bonding wires, sockets, and internal contact surfaces. Copper is found throughout the PCB layers, traces, coils, transformers, connectors, and power-distribution areas. Tin is commonly present in solder joints and surface finishes.

Silver may occur in solder, contacts, relays, conductive materials, or internal electronic structures. Palladium may be present in certain multilayer ceramic capacitors and older electronic components. Nickel is frequently used beneath gold plating, on connector shells, and as a protective or bonding layer. Aluminum and steel may be present in capacitors, brackets, shielding, or heatsinks, although excessive attached metal should not be included as if it were premium PCB material.

Ohata’s S Grade buying standard is based on grade conformity rather than exact model identity. The buyer evaluates whether the board displays the expected S Grade combination of high-value processors, dense IC content, gold contacts, complete electronic construction, and acceptable physical condition.

A seller should not assume that every board from a legacy computer, enterprise system, or hard drive qualifies for the same price. Boards must be inspected. Material that meets S Grade requirements is purchased as S Grade. Material that does not meet those requirements may be placed into A+, A, B, C, D, or another applicable classification.

Complete boards generally receive better consideration than stripped boards. The ceramic CPUs should remain installed where applicable. Gold fingers should not be cut away. Controller ICs, memory chips, sockets, and valuable semiconductor packages should not be removed. Selective depopulation changes the recoverable-material profile and can invalidate the original grade.

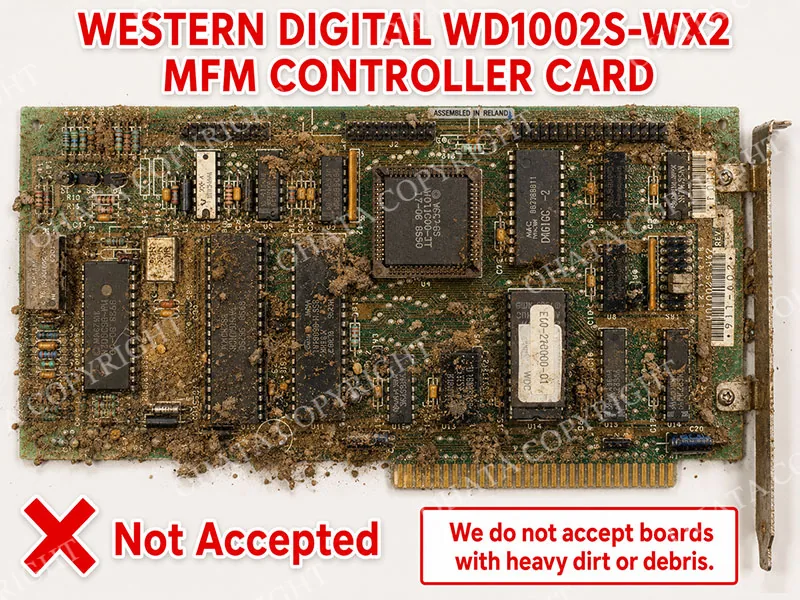

Boards should also be reasonably clean. Normal dust from storage or dismantling is usually different from severe contamination. Heavy oil, mud, chemical residue, battery leakage, unknown liquid contamination, excessive corrosion, or hazardous substances may require special evaluation or rejection.

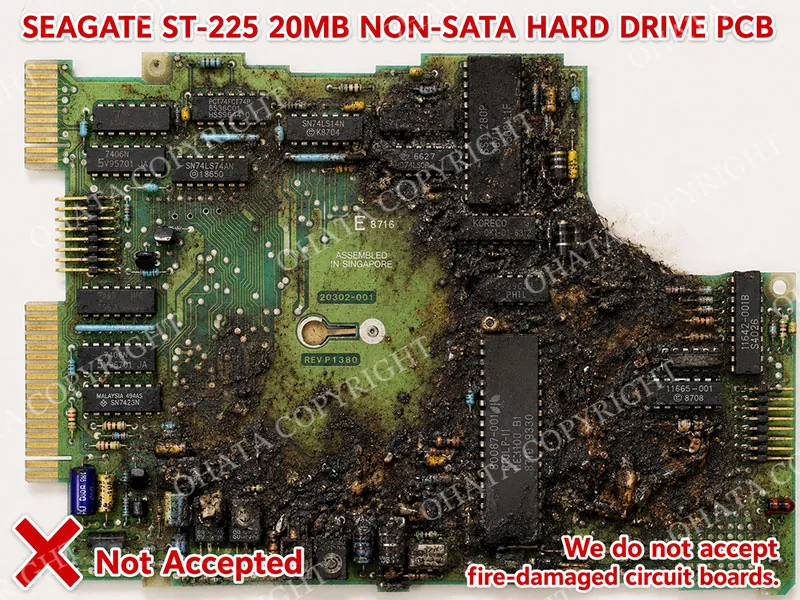

Severe burn damage is another important concern. Localized discoloration may be reviewed individually, but extensive carbonization, melted PCB sections, destroyed ICs, or fire-damaged material can reduce recoverable value and create processing hazards. Broken boards may also be downgraded if sections containing gold contacts, CPUs, or major ICs are missing.

Sellers should keep S Grade boards separated from lower grades. Mixing premium ceramic-CPU boards with ordinary desktop motherboards, appliance control boards, power-supply boards, steel-backed electronics, plastic housings, and unrelated e-waste increases sorting time and may reduce the settlement value of the mixed shipment.

Non-SATA hard drive boards should also be separated from common SATA HDD boards. Because interface type and board generation influence classification, mixing them together can make accurate grading more difficult.

For commercial quantities, materials should be packed in sturdy containers that protect ceramic processors and prevent board breakage. Ceramic packages can crack if boards are dropped, stacked carelessly, or compressed under heavy equipment. Boards should be kept dry and stored away from corrosive chemicals.

Loose batteries should be removed and handled separately. Heavy steel brackets, large aluminum heatsinks, fans, and plastic enclosures may also need to be removed, depending on purchasing instructions. The goal is to deliver identifiable circuit board material without excessive non-PCB weight.

Comparison and Official Ohata Classification

S Grade occupies a distinct position within the Ohata system. It is lower than SS Grade but higher than A+ Grade. The difference is not simply that one board is newer or more technologically advanced than another.

SS Grade boards usually come from high-value telecommunications and enterprise communication equipment. Typical SS material may include smartphone logic boards, server backplanes, network switch control boards, telecom switching boards, fiber optic boards, optical transport boards, and cellular base-station boards. These products often have extremely dense surface-mounted components, large BGA processors, advanced communication chipsets, and strong precious-metal concentration.

S Grade boards are often associated with premium legacy computing construction instead. Their value may come from multiple ceramic processors, large gold edge connectors, gold-plated pins, older high-value packaging methods, and durable multilayer PCB design. They may contain fewer modern BGA communication processors than SS Grade boards, but their ceramic semiconductor content and gold-bearing connectors can still make them highly desirable.

A+ Grade includes many advanced industrial, automation, medical, robotics, Apple, server, and high-density control boards. These boards may have excellent IC coverage, large CPU sockets, premium connectors, and complex multilayer construction. However, they may not contain the same combination of three or more ceramic CPUs or the specific legacy high-value characteristics associated with S Grade.

A Grade generally includes good-quality laptop motherboards, single-socket server boards, clean gold-finger expansion cards, optical-drive boards, backplanes, and other valuable computer hardware. These remain important recycling materials but usually have lower precious-metal concentration than qualifying S Grade boards.

B, C, and D Grades progressively include boards with lower semiconductor density, less gold plating, lower-value CPU socket construction, more integrated consumer design, or larger amounts of low-value attachments. Appliance grades cover mixed control boards and other lower-value electronics.

The official Ohata classification for S Grade may therefore be summarized as follows:

Board Grade: S Grade
Category: Premium Computer and Legacy High-Value Boards
Primary Examples: Circuit boards with three or more ceramic CPUs, especially purple ceramic processors; non-SATA HDD controller boards
Key Characteristics: Numerous IC chips, gold edge connectors, valuable ceramic semiconductor packages, quality capacitors and connectors, and strong precious-metal recovery potential
Pricing Principle: Any board meeting the S Grade inspection standard may be purchased at the S Grade price, regardless of brand or exact model
Condition Requirement: Boards should be complete, identifiable, reasonably clean, and free from severe contamination, destructive stripping, or major missing high-value sections
Downgrade Factors: Missing ceramic CPUs, removed ICs, cut gold fingers, missing connectors, broken PCB areas, severe corrosion, heavy contamination, burn damage, or excessive attached non-PCB material
Sorting Requirement: Keep S Grade boards separated from lower-grade computer boards, SATA HDD boards, appliance boards, and mixed electronic waste

The essential principle is consistency. Ohata does not classify a board as S Grade merely because it is rare, old, large, or associated with a well-known manufacturer. The board must contain the physical features and recoverable materials required by the S Grade standard.

When these requirements are satisfied, boards from different brands, industries, and equipment generations may all be grouped and priced under the same S Grade category. This grade-based method provides a more accurate, transparent, and commercially practical approach to waste circuit board purchasing than pricing every board solely by its original model name.
