Board D Grade (Lower computer Board) buying scrap price

Introduction, Construction, Components, and Recycling Value

1.1 Introduction to D Grade Circuit Boards

Once a circuit board is confirmed as D Grade, it is purchased and valued according to the applicable D Grade price. Two boards may have different shapes, manufacturers, socket types, layouts, or original applications, but they may still receive the same recycling classification when their expected material recovery and processing value are similar.

D Grade commonly includes modern consumer desktop motherboards, integrated computer motherboards, lower-grade laptop motherboards, low-value peripheral cards, certain game console boards, and gold-finger cards carrying oversized heatsinks or cooling fans. These boards are recyclable, but they usually contain lower concentrations of gold, palladium, silver, and high-value integrated circuits than B Grade, C Grade, A Grade, or industrial control boards.

The purpose of the D Grade classification is to create a consistent purchasing standard. It prevents pricing from depending only on a visible model number or the seller’s description. The final grade is determined by the actual board presented for inspection.

1.2 General Construction

Most D Grade boards use a multilayer printed circuit board made from an FR-4 fiberglass and epoxy-resin substrate. Thin copper layers are laminated inside the board to form electrical power planes, ground planes, and signal pathways. External copper traces connect the processor socket, memory slots, chipset packages, expansion interfaces, storage connectors, power circuits, and rear input/output ports.

Modern cost-efficient manufacturing is an important characteristic of many D Grade boards. Compared with older premium computer boards or advanced industrial electronics, D Grade products are designed to provide reliable operation while reducing the use of expensive materials.

A typical D Grade desktop motherboard may contain:

• A metal-covered LGA processor socket

• Two or four memory slots

• One main chipset or platform controller hub

• Integrated audio and network controllers

• PCI Express expansion slots

• SATA or similar storage connectors

• USB and front-panel headers

• Voltage-regulation components

• Rear input/output connectors

• Aluminum heatsinks or attached cooling assemblies

The presence of these parts does not automatically raise the board to a higher classification. Grading considers the complete balance of board construction, component density, socket design, precious-metal-bearing surfaces, attached materials, and processing efficiency.

1.3 Common Components

The processor socket is often the most visible component on a D Grade desktop motherboard. Many boards use a metal retention cover and lever. The center of the socket base may show a rectangular opening, double-L pattern, or another later-generation contact arrangement. These metal-covered consumer CPU sockets are common identification indicators for this category.

Other components may include small or medium-sized ball-grid-array chipsets, memory sockets, PCI Express connectors, network controllers, audio chips, BIOS chips, power MOSFETs, inductors, capacitors, resistors, crystal oscillators, and plastic data connectors.

D Grade laptop motherboards are generally non-Apple boards with lower precious-metal-bearing semiconductor packages. They may have soldered processors or chipsets, but they lack the stronger gold-tab BGA characteristics used to identify some higher-grade laptop boards.

Peripheral cards may also qualify as D Grade when they have relatively low integrated-circuit density or when large fans, heatsinks, brackets, and cooling assemblies account for a significant portion of their weight.

1.4 Recycling Value

D Grade does not mean that the material has no recycling value. These boards remain useful sources of copper, aluminum, steel, solder metals, and smaller quantities of precious metals.

However, their value per pound is normally lower because:

1. Precious-metal concentrations are comparatively limited.

2. Component density is lower than on premium computer or industrial boards.

3. Large heatsinks, steel brackets, fans, and plastic connectors may increase weight without adding equivalent refining value.

4. Modern components often use less gold than older electronic packages.

5. Integrated designs reduce the number of removable high-value modules.

6. Some boards contain large unpopulated areas or relatively simple circuitry.

The economic value of D Grade material often depends on processing volume. A single board may contain only a small amount of recoverable precious metal, but large, properly sorted shipments can provide meaningful quantities of copper and other recyclable materials.

Ohata D Grade Classification and Identification Guide

2.1 Official D Grade Scope

Under the Ohata Board Scrap Classification System, D Grade is described as low-grade computer board material. Typical qualifying examples include integrated motherboards without premium gold-bearing finishes, later-generation consumer motherboards with metal processor sockets, low-grade peripheral boards, non-Apple laptop boards without qualifying gold-tab BGA packages, and certain family game machine boards.

The category may include:

• Integrated motherboards without gold bonding-wire or ENIG-related value indicators

• I-Series and similar consumer motherboards with metal CPU socket covers and levers

• Desktop motherboards with metal processor sockets

• Gold-finger cards with oversized heatsinks or cooling fans

• Lower-grade peripheral boards

• Non-Apple laptop motherboards without gold-tab BGA packages

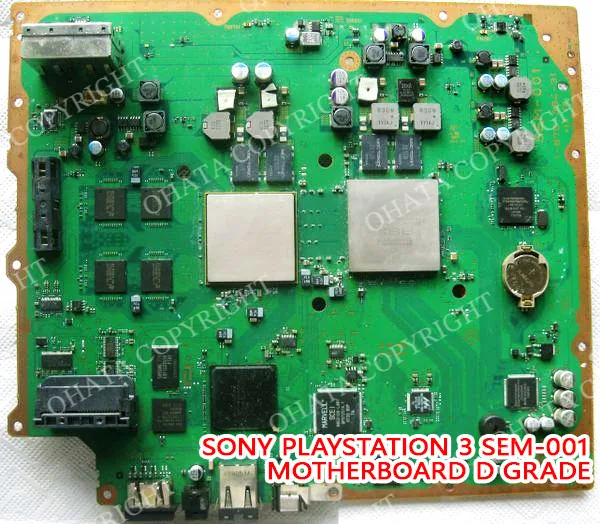

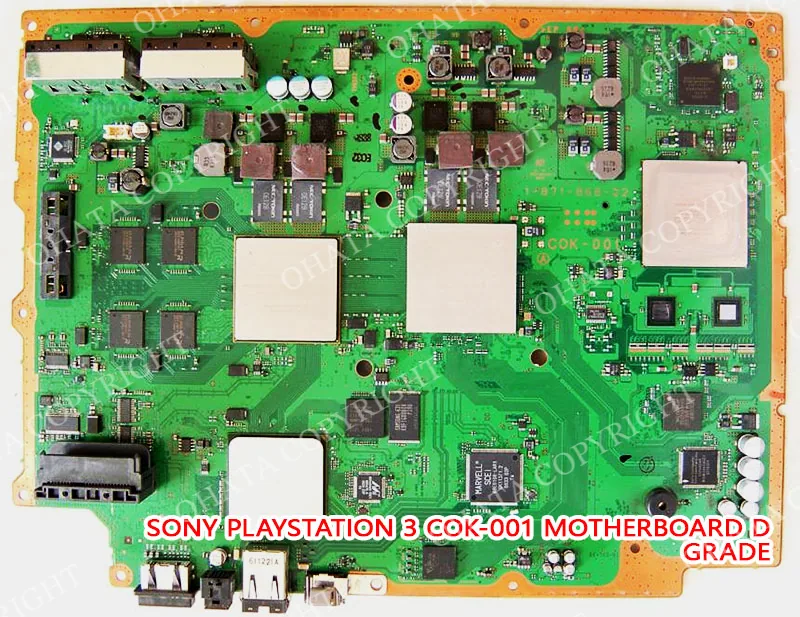

• Certain family game console boards

These examples are identification references rather than a closed model list. A board does not need to carry a specific label to qualify. Likewise, a model name alone does not guarantee D Grade status.

2.2 Model Names Do Not Determine the Price

Ohata grading is based on the physical board received. A seller may identify a board as a gaming motherboard, workstation board, server board, graphics card, or laptop logic board, but the original product description does not replace inspection.

For example, two motherboards using different processor generations may both qualify as D Grade if they have similar metal socket structures, limited semiconductor density, modest precious-metal content, and ordinary consumer-grade construction.

Conversely, two boards with similar model names may receive different grades when one is complete and the other has been stripped, damaged, contaminated, or fitted with excessive non-board attachments.

The central pricing principle is:

All circuit boards that satisfy the Ohata D Grade recycling standard are purchased according to the D Grade price applicable at the time of inspection.

Pricing is therefore based on recycling classification rather than retail value, working condition, original computer price, advertised performance, or brand reputation.

2.3 Visual Identification Checklist

Inspectors can use the following indicators when evaluating possible D Grade material.

Processor socket

A modern metal-covered LGA-style socket with a retention lever is a common D Grade indicator for consumer desktop motherboards. The socket should be distinguished from large premium server sockets, multi-processor platforms, or older plastic PGA sockets that may fall into other categories.

Integrated-circuit density

D Grade boards generally show low to moderate IC coverage. They may have one primary chipset and several small controller chips, but they usually lack the dense semiconductor coverage associated with telecom, industrial, server, or full-IC boards.

Gold-bearing surfaces

Gold-plated contacts may still appear in memory slots, processor socket contacts, PCI Express connectors, small card-edge fingers, and communication ports. However, the quantity and exposed area are normally limited compared with higher grades.

Heatsinks and fans

A gold-finger card may be classified as D Grade when oversized heatsinks or cooling fans remain attached. These assemblies add aluminum, steel, plastic, motors, and wiring to the shipment. The additional weight reduces the average value of the board material.

Laptop motherboard characteristics

A non-Apple laptop motherboard without qualifying gold-tab BGA packages may fall into D Grade. Inspectors should evaluate the whole board rather than assuming every laptop motherboard belongs to the same category.

General board complexity

D Grade boards usually have simpler layouts, fewer premium connectors, fewer large processing packages, and more cost-efficient consumer construction than higher-grade materials.

2.4 Complete-Board Assessment

Classification should normally be performed on the board in the condition in which it is offered for sale. Removed chipsets, missing processors, cut-off sections, broken connectors, or stripped components may change the accepted grade.

A complete D Grade board should generally retain its original major electronic components. Normal removal of detachable memory, storage devices, cables, or batteries may be acceptable depending on the material type, but intentional stripping of soldered chipsets or major IC packages reduces recycling value.

A board that originally qualified as D Grade may be downgraded or rejected when it is:

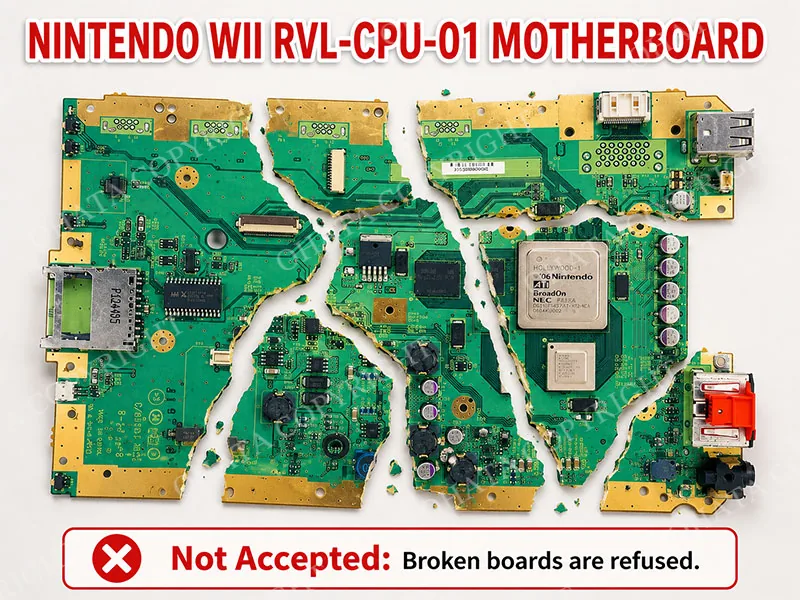

• Broken into multiple pieces

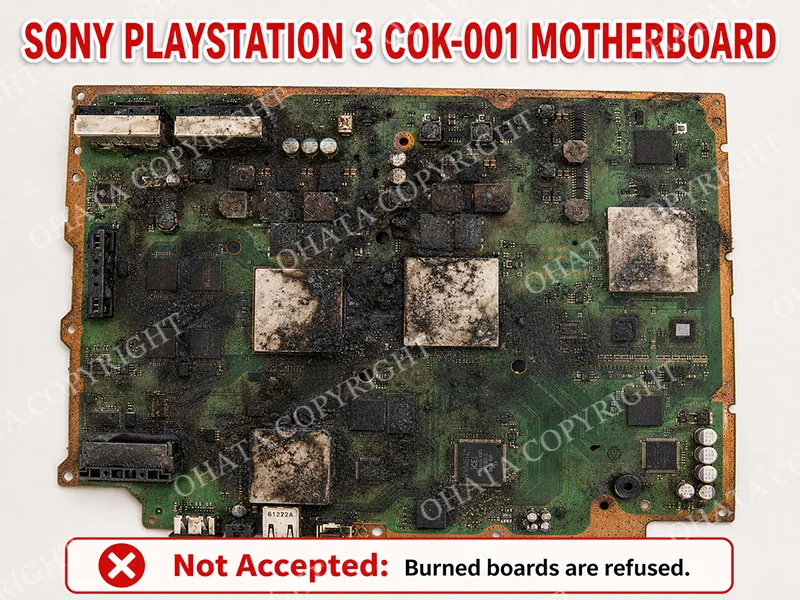

• Severely burned or carbonized

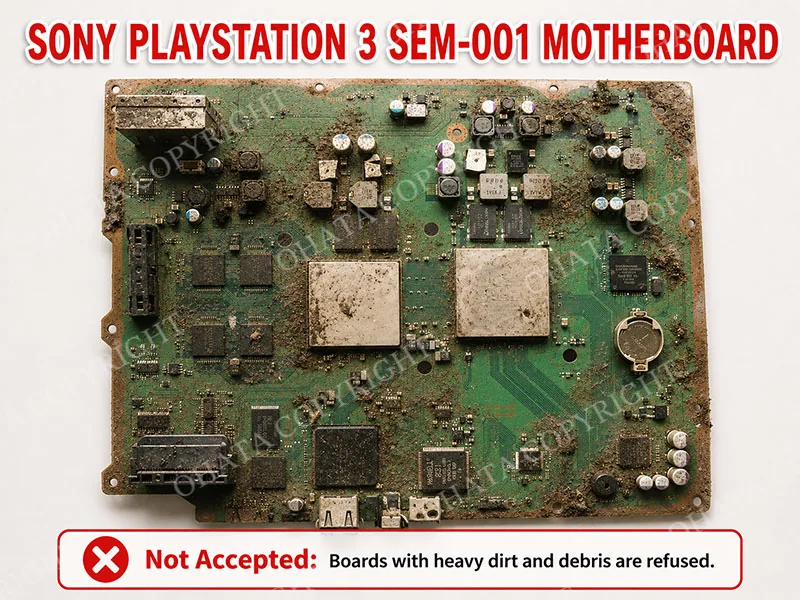

• Covered with mud, oil, or heavy debris

• Missing major soldered chipsets

• Mixed with batteries or hazardous materials

• Combined with excessive steel, plastic, or unrelated electronic waste

• Delivered in a mixed-grade load requiring extensive sorting

Recoverable Materials, Buying Standards, and Handling

3.1 Recoverable Copper

Copper is usually the most important recoverable metal by weight in D Grade circuit boards. It is found in internal PCB layers, surface traces, power planes, inductors, transformer windings, connector pins, cables, and voltage-regulation circuitry.

Although the copper concentration varies by board thickness and design, large volumes of D Grade motherboards can contribute substantial copper recovery. This is one reason D Grade computer boards should remain separate from very low-grade appliance boards whenever practical.

3.2 Precious and Secondary Metals

Small amounts of gold may be present on CPU socket contacts, memory-slot contacts, card-edge connectors, PCI Express slots, communication ports, and microscopic internal semiconductor connections.

Silver may be found in solder alloys, switches, contacts, and selected electronic components. Palladium may appear in certain multilayer ceramic capacitors, although the concentration varies by manufacturing period and component specification.

Nickel is commonly used as an underplating or corrosion-resistant layer beneath other finishes. Tin is widely present in solder and component plating. Aluminum appears mainly in heatsinks, while steel is found in processor retention mechanisms, brackets, shields, and fan structures.

The existence of these metals does not make every D Grade board high value. The grade reflects their concentration, accessibility, processing cost, and average recoverable yield.

3.3 Ohata Buying Standards

D Grade material should be delivered as recognizable circuit boards rather than unidentified shredded material or mixed electronic waste.

Preferred buying conditions include:

• Boards remain physically complete.

• Major soldered chipsets are present.

• The boards are reasonably clean and dry.

• Heavy steel cases and unrelated housings are removed.

• Loose batteries are separated.

• Different Ohata grades are sorted into separate containers.

• Excessive dirt, oil, glass, plastic, and packaging are excluded.

• Large heatsinks and fans are disclosed during inspection.

• The shipment can be safely weighed and handled.

Operational status is generally not the primary grading factor. A board does not need to function as an electronic device to retain recycling value. A non-working board may still qualify as D Grade when it is complete, identifiable, clean, and suitable for normal processing.

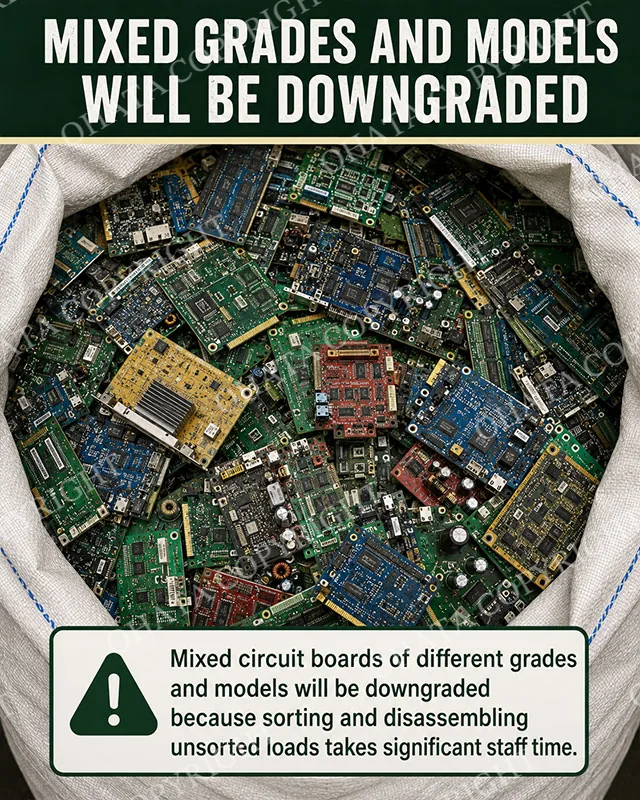

3.4 Mixed Loads and Downgrading

D Grade boards should not be mixed indiscriminately with higher-grade motherboards, premium telecom boards, low-grade appliance boards, power supplies, cables, batteries, or complete computer cases.

Mixed shipments require additional labor for inspection, separation, weighing, and dismantling. When different grades and models are heavily mixed, the shipment may be downgraded, purchased according to the lowest practical category, or assessed using an adjusted mixed-load price.

Proper separation protects the value of both the D Grade material and any higher-grade boards in the shipment.

3.5 Safe Handling and Storage

Boards should be stored in dry containers or on pallets protected from rain and ground moisture. Excessive water can increase shipment weight, promote corrosion, and create unsafe handling conditions.

Workers should use gloves when handling sharp boards and metal brackets. Boards should not be intentionally burned, chemically treated, or crushed without proper industrial controls. Open burning can release hazardous smoke and destroy recoverable metals, while uncontrolled chemical processing may expose workers and the environment to corrosive or toxic substances.

Batteries, mercury-containing components, large capacitors, and other regulated materials should be separated according to local requirements.

Comparison and Official Ohata Classification

4.1 D Grade Compared with C Grade

C Grade generally includes standard electronic boards with moderate recoverable value, such as trimmed gold-finger cards, cards with attached fans or heatsinks, and selected desktop motherboards using qualifying plastic CPU sockets.

D Grade is normally lower because its boards contain less favorable precious-metal-bearing construction, lower-value socket designs, lower component density, or a greater proportion of low-value attachments.

The distinction is not based only on age. An older board is not automatically C Grade, and a newer board is not automatically D Grade. The complete physical characteristics must be evaluated.

4.2 D Grade Compared with B Grade

B Grade boards usually offer stronger recycling value through better component density, more favorable plastic socket categories, higher-grade peripheral construction, qualifying server motherboard designs, or more valuable semiconductor arrangements.

Compared with B Grade, D Grade material commonly has:

• Lower integrated-circuit density

• Less exposed gold plating

• Fewer valuable semiconductor packages

• More integrated consumer functions

• Greater use of metal socket covers

• More low-value cooling or structural attachments

• Lower expected precious-metal yield per pound

A D Grade board should not be upgraded merely because it contains a CPU socket or a visible gold-colored connector.

4.3 D Grade Compared with Appliance Boards

D Grade remains a computer-board classification and may contain more copper, more data connectors, and more complex circuitry than many ordinary appliance-control boards.

Appliance boards often come from washing machines, ovens, air conditioners, simple power systems, automotive modules, and household control equipment. These boards may contain large relays, transformers, power components, and broad unpopulated areas while offering limited precious-metal recovery.

Therefore, D Grade computer boards should remain separate from Appliance Board A and Appliance Board B whenever possible.

4.4 Official Ohata Classification Statement

A circuit board may be officially classified as Ohata D Grade Board Scrap when its actual construction and recoverable-material profile correspond to the low-grade computer board category.

Qualifying factors may include a modern consumer motherboard layout, a metal-covered processor socket, limited IC density, relatively low precious-metal concentration, non-premium laptop motherboard construction, low-grade peripheral design, or excessive cooling attachments on a gold-finger card.

The classification applies to all qualifying boards, regardless of brand, model number, original selling price, working status, or previous equipment application.

The final purchasing rule is straightforward:

When a circuit board satisfies the Ohata D Grade inspection standard, it is accepted and priced as D Grade material.

The model name may assist identification, but it does not replace physical inspection. Complete, clean, correctly sorted boards receive the most consistent assessment. Stripped, damaged, contaminated, or mixed material may be downgraded or rejected according to its delivered condition.

By applying one standardized grade to boards with comparable recycling characteristics, the Ohata system provides sellers and recyclers with a transparent, practical, and repeatable basis for purchasing low-grade computer circuit boards.
