Board C Grade (Lower Premium Board) buying scrap price

Introduction, Construction, Components, and Recycling Value

The C Grade classification is not limited to one particular motherboard model, computer brand, production year, or equipment manufacturer. A board is purchased as C Grade when its physical construction, processor-socket category, connector condition, component density, and processing requirements match the Ohata C Grade standard. Different models may therefore receive the same C Grade buying price when their recoverable material profiles are sufficiently similar.

This grading method is important because the resale value of scrap circuit boards is determined primarily by recoverable material content and processing efficiency—not by whether the board originally came from a famous computer brand or an expensive electronic product. A functional board and a non-functional board may have the same recycling grade if both retain the same essential components and remain complete, clean, and suitable for material recovery.

Typical Construction

Most C Grade boards are manufactured from multilayer FR-4 material. FR-4 is a glass-fiber-reinforced epoxy laminate that provides mechanical strength, electrical insulation, and heat resistance. Conductive copper traces and copper planes are laminated between the insulating layers to distribute power and transmit electrical signals.

A typical C Grade desktop motherboard may contain:

• A plastic CPU socket classified within an applicable Ohata socket group

• Memory slots with plated internal contacts

• PCI, PCI Express, AGP, or similar expansion connectors

• Chipset and controller integrated circuits

• Voltage-regulation circuits

• Capacitors, resistors, inductors, and transformers

• Rear input/output connectors

• Power connectors and internal headers

• BIOS or firmware memory devices

• Network, audio, storage, and peripheral controllers

A C Grade expansion card may contain a graphics processor, interface controller, memory chips, voltage-regulation components, and a gold-plated edge connector. However, its gold fingers may have been shortened or trimmed, or the board may still have a fan, heatsink, or metal cooling assembly attached.

Why These Boards Have Moderate Recycling Value

C Grade boards contain recoverable copper, gold, silver, tin, nickel, aluminum, and small quantities of other metals. However, their precious-metal concentration is generally lower than that of A+, A, or certain B Grade materials.

Several factors limit their value:

First, C Grade boards usually have lower integrated-circuit density. Large numbers of semiconductor packages can increase the amount of microscopic gold bonding wire, copper lead frames, palladium-bearing components, and other recoverable materials. Boards with fewer integrated circuits generally produce a lower precious-metal yield.

Second, trimmed gold-finger cards have already lost part of their most recognizable gold-bearing area. Although the remaining board is still recyclable, its value is lower than that of a complete, clean expansion card with intact gold fingers.

Third, fans and heatsinks add non-board weight. Aluminum heatsinks are recyclable, but they do not carry the same value per pound as the populated circuit board. Cooling fans may also contain plastic, steel, wire, and small motors that require separate processing.

Fourth, standard desktop motherboards generally contain less valuable material than industrial control boards, telecommunications boards, Apple logic boards, high-density server boards, or older premium computer boards.

Nevertheless, C Grade material should not be treated as ordinary waste. In commercial quantities, properly sorted C Grade boards provide meaningful copper recovery and a consistent supply of plated connectors, semiconductor devices, solder metals, and non-ferrous materials.

Ohata C Grade Classification and Identification Guide

Under the Ohata Board Scrap Classification System, C Grade is defined as a standard electronic-board category positioned below B Grade and above D Grade. Representative C Grade materials include trimmed gold-finger cards, gold-finger cards with fans or heatsinks attached, and desktop motherboards equipped with designated plastic CPU-socket groups, including Ohata socket classifications No. 2, 4, 6, 7, and 9.

The exact model number does not independently establish the grade. Inspectors must examine the complete board because different revisions of a similar product may contain different sockets, chipsets, connectors, heatsinks, or component layouts.

1. Trimmed Gold-Finger Cards

Gold-finger cards are expansion or interface boards designed to connect to a motherboard, backplane, or equipment chassis. Their edge connectors normally contain rows of plated contacts.

When the gold-finger section has been cut, shortened, or intentionally removed, much of the board may remain populated with useful electronic components. However, removing the connector area reduces the expected gold recovery and changes the board’s processing value.

These trimmed boards are generally assigned to C Grade rather than the higher category used for clean, intact gold-finger cards. Inspectors should confirm that the remaining board is still populated and has not been stripped of its principal integrated circuits.

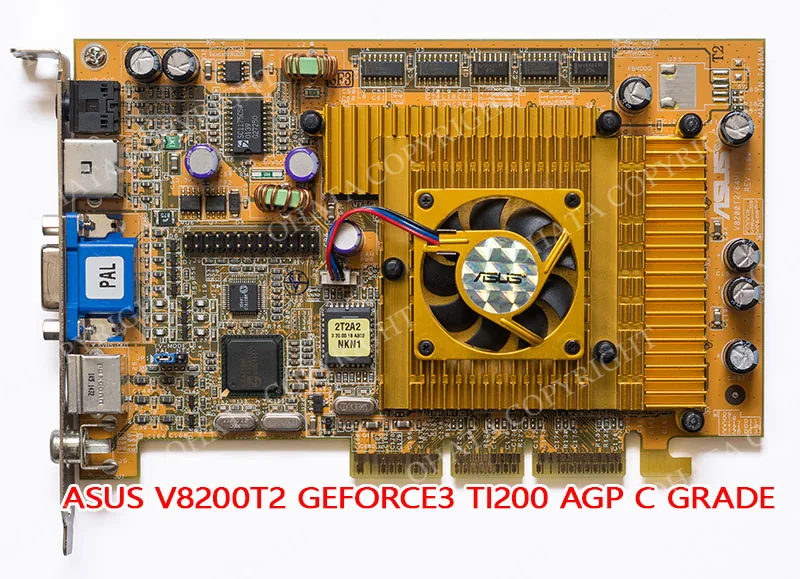

2. Gold-Finger Cards with Fans or Heatsinks Attached

Graphics cards, controller cards, accelerator cards, and other expansion boards may contain a fan, aluminum heatsink, heat pipe, or cooling bracket. These attachments increase gross weight while lowering the percentage of actual circuit-board material in the load.

A clean expansion card with valuable components and no fan, heatsink, or unnecessary metal attachment may qualify for a higher grade. When the fan or heatsink remains attached, however, the complete item may be purchased as C Grade because additional dismantling is required.

The purpose of this classification is not to suggest that every card with a heatsink is identical. Instead, it establishes a practical buying category for boards that have moderate electronic value but arrive with cooling components that reduce processing efficiency.

Oversized cooling systems may cause a further downgrade if the attachment represents a disproportionately large part of the total weight. Final classification therefore depends on the size of the heatsink, the remaining board area, the integrated-circuit density, and the condition of the gold connector.

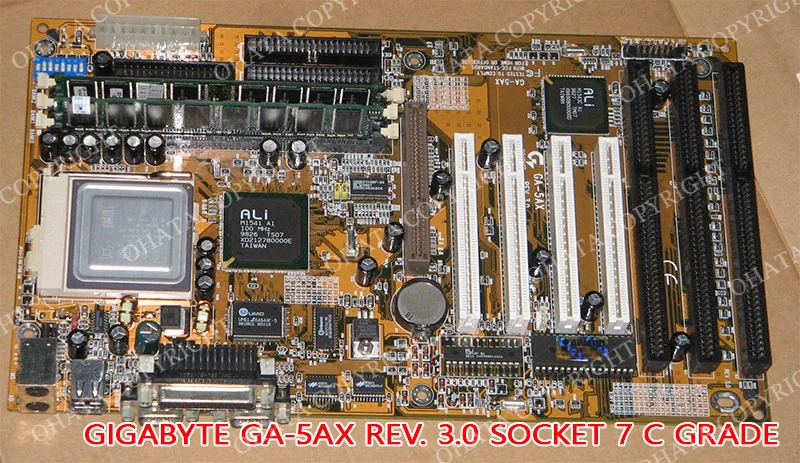

3. Desktop Motherboards with Applicable Plastic CPU Sockets

Selected desktop motherboards with plastic CPU sockets fall within C Grade when their socket design corresponds to the Ohata internal socket categories No. 2, 4, 6, 7, or 9.

The identifying feature is not simply that the socket contains plastic. The board must also display the general value profile associated with C Grade: standard desktop construction, moderate component density, ordinary expansion connectors, conventional chipset packages, and limited premium precious-metal content.

Inspectors should evaluate:

• CPU-socket construction and retention mechanism

• Socket size and internal contact arrangement

• Number and type of memory slots

• Chipset quantity and package type

• Expansion-slot configuration

• Density of controller and support ICs

• Presence of gold-plated contacts

• Size of heatsinks and other attachments

• Completeness and physical condition of the board

The numbers used in the Ohata socket grouping are internal classification references. They should not be replaced with assumptions based only on an external CPU-socket name. When classification is uncertain, the physical board should be compared with official reference samples.

4. Grade Is Determined by the Entire Board

A single valuable-looking component does not automatically raise a board above C Grade. Likewise, one low-value attachment does not always force a board into D Grade.

The inspector must consider the complete recoverable profile. A board containing one large chip but very few supporting components may remain C Grade. A board with substantial integrated-circuit coverage, premium gold-bearing connectors, or specialized industrial construction may qualify for B Grade or above.

Conversely, a lightly populated desktop motherboard, an expansion card with a very large cooling assembly, or a board stripped of important components may be downgraded.

5. Different Models Can Receive the Same C Grade Price

C Grade is a material classification rather than a model-specific resale list. For example, two desktop motherboards may have different brands, dimensions, chipsets, and manufacturing dates. If both meet the same C Grade structural and processing criteria, both are purchased at the C Grade rate.

Similarly, different graphics or interface cards may be grouped together when their gold fingers are trimmed or their fans and heatsinks remain attached. The original retail price, performance level, or operational condition does not necessarily change the recycling grade.

Recoverable Materials, Buying Standards, and Handling

Recoverable Copper

Copper is usually the largest recoverable metal by weight in C Grade circuit boards. It is found in internal PCB layers, surface traces, power planes, grounding areas, inductors, transformers, connector pins, cables, and voltage-regulation circuits.

Desktop motherboards often contain multiple copper layers, especially around the CPU power-delivery area, memory circuits, expansion slots, and main power connectors. Even when precious-metal concentration is moderate, copper recovery gives C Grade boards a stable recycling value.

Gold-Bearing Areas

Gold may be present in:

• CPU-socket contacts

• Memory-slot contacts

• Expansion-slot contacts

• Intact portions of edge connectors

• Rear input/output connectors

• Internal headers and selected plug contacts

• Microscopic bonding wires inside certain integrated circuits

The gold layer on modern connectors is usually thin. Consequently, commercial recovery normally requires large quantities of boards. Trimmed gold fingers reduce the expected yield because part of the plated connector has already been removed.

Silver, Tin, Nickel, and Palladium

Silver may be present in certain solder alloys, switches, contacts, and electronic components. Tin is commonly recovered from solder and connector coatings. Nickel is frequently used as an intermediate plating layer beneath gold or other surface finishes.

Small quantities of palladium may occur in multilayer ceramic capacitors and selected electronic components. The actual palladium concentration varies considerably according to component age, manufacturer, board application, and production technology.

Aluminum, Steel, and Other Attachments

C Grade graphics and expansion cards may arrive with aluminum heatsinks, steel brackets, copper heat pipes, plastic fan housings, and small electric motors. These materials are recyclable, but they should not be confused with the value of the populated PCB.

Where practical, removable heatsinks, fans, batteries, heavy brackets, and excessive wiring should be separated before delivery. Proper preparation can reduce unnecessary weight and make inspection more efficient. However, sellers should not remove chipset ICs, processors that are required for a quoted category, memory devices soldered to the board, or other value-bearing components.

Buying and Acceptance Standards

C Grade boards should be delivered complete enough to represent their normal recycling category. The following conditions support accurate grading:

1. The main PCB should remain structurally intact.

2. Chipset ICs, controller chips, and other major semiconductor packages should not be removed.

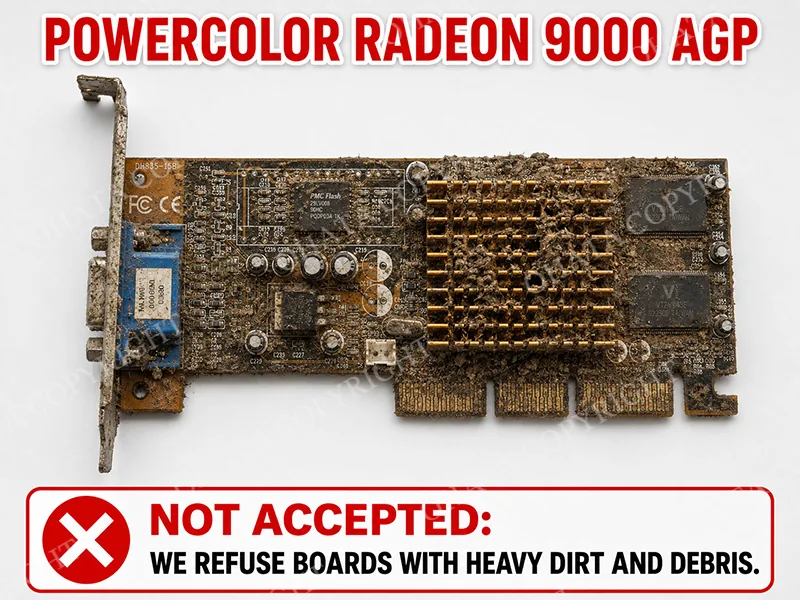

3. The board should be reasonably clean and free from heavy mud, oil, chemicals, and hazardous contamination.

4. Batteries should be removed when they can be safely detached without damaging the board.

5. Different board grades should be sorted separately.

6. Excessive steel frames, plastic housings, cables, and unrelated electronic waste should not be included in C Grade board weight.

7. Sellers should disclose whether gold fingers have been trimmed or major attachments have been removed.

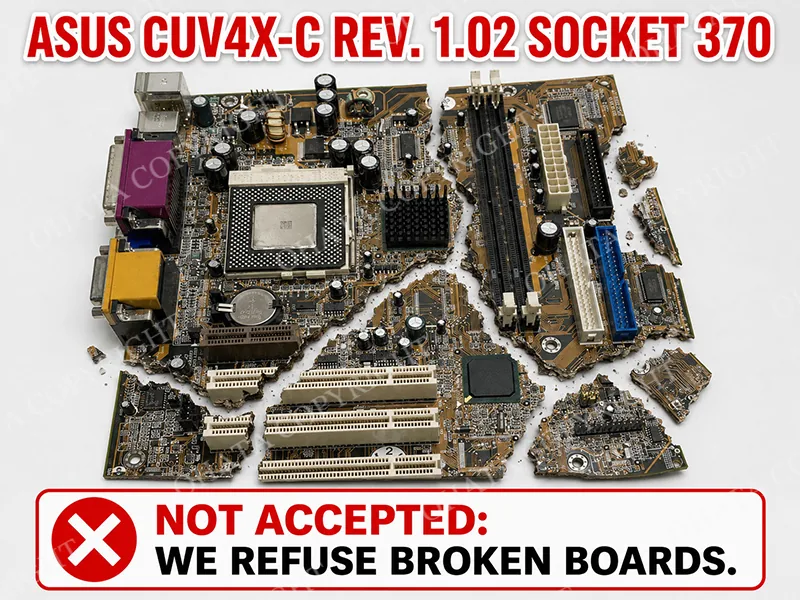

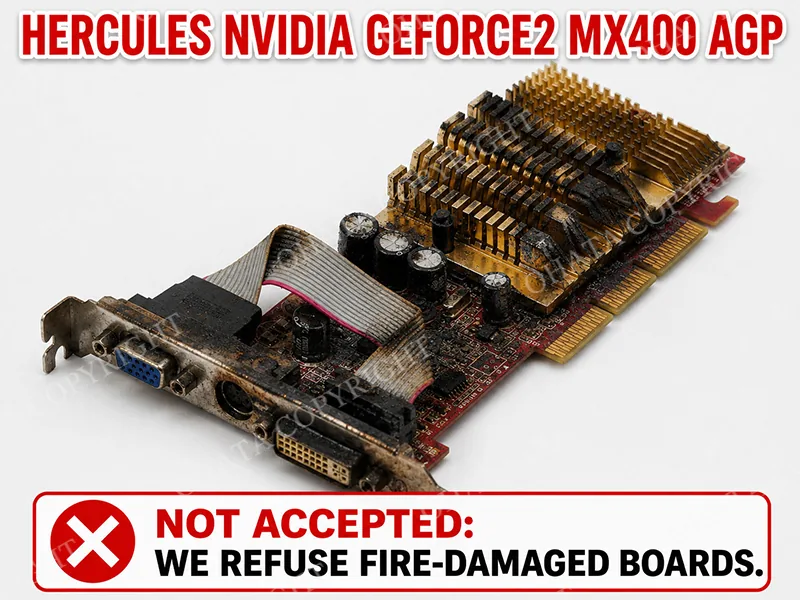

Boards that are broken into several pieces, severely burned, chemically contaminated, heavily stripped, or converted into nearly empty PCBs may be rejected or purchased under a lower category.

Mixed Loads and Downgrading

C Grade boards should not be mixed with A+, A, B, D, or appliance-grade boards. A mixed load requires additional inspection, sorting, dismantling, and weighing. When accurate separation is impossible, the load may be priced according to the lowest significant grade or processed as mixed electronic scrap.

Keeping trimmed cards separate from intact cards is especially important. Clean gold-finger cards without fans, heatsinks, or brackets may qualify for a higher category, while trimmed or attached-cooling cards may be C Grade. Mixing them can reduce transparency during settlement.

Desktop motherboards should also be separated by socket construction and overall grade. Visual similarity does not guarantee identical value.

Safe Storage and Transportation

Boards should be stored in dry containers, cartons, crates, or pallet boxes. Exposure to rain can cause corrosion and adds moisture weight that may affect inspection. Boards should not be stored directly on wet concrete or contaminated ground.

Large heatsinks and sharp metal brackets can damage nearby circuit boards during transportation. Heavy cards should therefore be arranged carefully rather than thrown loosely into a container.

Workers handling scrap boards should use appropriate gloves and follow safe procedures for batteries, broken components, sharp solder points, dust, and potentially hazardous residues. Boards should not be burned, crushed without suitable equipment, or chemically processed outside a properly controlled recycling facility.

Comparison and Official Ohata Classification

C Grade Compared with B Grade

B Grade boards generally contain a stronger recoverable-material profile. They may include lower-grade telecommunications boards, certain multi-socket server motherboards, higher-grade peripheral boards, selected desktop motherboards, and expansion cards with better connector or component characteristics.

Compared with C Grade, B Grade material may have:

• Greater integrated-circuit density

• More substantial gold-bearing contacts

• Better semiconductor coverage

• More complex server or telecommunications construction

• Less non-board attachment weight

• A higher expected precious-metal yield

A C Grade board should not be upgraded to B Grade merely because it is large or contains a recognizable processor socket. Its complete component and connector profile must support the higher classification.

C Grade Compared with D Grade

D Grade boards generally have lower precious-metal concentrations, lighter component coverage, later cost-reduced construction, metal-covered desktop CPU sockets, lower-grade peripheral designs, or oversized cooling systems.

C Grade normally retains a more favorable balance between populated PCB weight and recoverable components. However, a C Grade candidate may be downgraded to D Grade when major chips have been removed, the heatsink is excessively large, the connector area is heavily damaged, or the board’s component density is significantly below the C Grade reference.

C Grade Compared with A and A+ Grades

A Grade includes higher-quality laptop motherboards, large single-socket server motherboards, clean gold-finger cards, certain backplanes, and other computer boards with stronger recoverable value.

A+ Grade includes advanced industrial, PLC, CNC, robotics, medical, enterprise, and high-density electronic boards. These materials often contain extensive IC coverage, specialized connectors, premium PCB construction, and greater precious-metal potential.

C Grade boards should not be compared with these categories on the basis of original equipment price. An industrial controller that originally cost thousands of dollars may qualify for A+ Grade because of its construction, while a high-performance consumer graphics card with a heavy cooling system may still be C Grade or D Grade in scrap form.

Official Ohata C Grade Classification Statement

Under the Ohata Board Scrap Classification System, a circuit board is officially classified as C Grade when its overall recoverable-material profile corresponds to standard-grade computer or electronic boards, including applicable trimmed gold-finger cards, gold-finger cards with fans or heatsinks attached, and desktop motherboards using the designated C Grade plastic CPU-socket groups.

The classification applies to all qualifying boards, regardless of brand, exact model number, original selling price, equipment performance, or working condition. Boards that meet the same C Grade inspection standard are purchased according to the same C Grade pricing category.

Final grading is based on physical inspection. Ohata evaluates the CPU socket, gold-bearing connector condition, integrated-circuit density, PCB construction, attached cooling components, completeness, cleanliness, contamination, and processing requirements.

A seller can protect the value of C Grade material by keeping the boards complete, clean, dry, and separated from higher or lower grades. Proper sorting improves inspection accuracy, reduces processing time, and ensures that each qualifying circuit board receives the correct official Ohata classification and corresponding C Grade purchase price.
