Board A Grade (premium computer Board) buying scrap price

Introduction, Construction, Components, and Recycling Value

This means that an individual circuit board does not receive a special price simply because it is a well-known model. Any circuit board that satisfies the official A Grade requirements may be purchased at the applicable A Grade price. Likewise, a board commonly associated with an A product category may be downgraded when important components have been removed, the board is incomplete, or its actual construction does not meet the required standard.

The purpose of this grade-based approach is to create consistent purchasing decisions across many brands and product families. Two boards may come from completely different machines, but both may qualify for the same A Grade when they have comparable component coverage, connector quality, processing complexity, precious-metal-bearing areas, and recycling value.

According to the Ohata classification standard, representative A materials include:

• WiFi and M.2 boards with gold fingers, including portable WiFi boards

• SATA hard-drive controller boards

• Large multi-CPU PGA-socket server motherboards with two or more sockets

• Middle-grade telecommunications boards

• Apple laptop logic boards

• Full-IC boards with integrated-circuit coverage above approximately 90 percent

• Industrial control boards

• PLC CPU boards

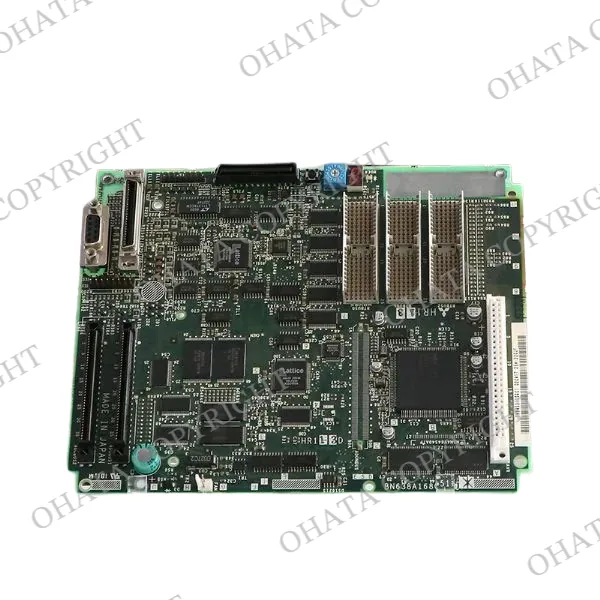

• CNC machine controller boards

• Telecommunications switching and industrial network boards

• Robotics control boards

• Medical equipment control boards

The standard describes A Grade as a category for advanced industrial and enterprise electronics that generally combine dense semiconductor coverage, quality connectors, large processor interfaces, premium PCB construction, and substantial recoverable material value.

Construction of A Grade Boards

Most A Grade boards use multilayer printed circuit board construction. Beneath the visible surface are multiple internal copper layers carrying power, grounding, and high-speed electronic signals. Industrial, medical, telecommunications, and server boards are often designed for stable operation, accurate signal control, and long service life. As a result, they may contain more complex internal routing and stronger power-distribution structures than ordinary appliance boards.

A boards frequently contain a large number of surface-mounted components. These may include:

• BGA processors and controller chips

• Memory packages

• Field-programmable gate arrays

• Digital signal processors

• Network controllers

• Industrial communication chips

• Power-management integrated circuits

• Oscillators and timing devices

• Multilayer ceramic capacitors

• High-quality relays and connectors

• Gold-plated edge contacts or socket contacts

• Copper-rich inductors, transformers, and power sections

The exact arrangement varies by application. A PLC CPU board may contain a central processor, memory, communication controllers, isolation components, and industrial bus connectors. A CNC controller may include motion-control processors, memory devices, machine-interface circuits, and many specialized ICs. An Apple laptop logic board may have tightly packed BGA processors, memory, power-management devices, gold-plated contacts, and high-density multilayer construction. A multi-processor server motherboard may contain several large processor sockets, many memory connectors, extensive voltage-regulation circuits, and enterprise I/O controllers.

Why A Grade Boards Have Strong Recycling Value

A Grade value is created by the combination of board construction and recoverable materials rather than by one visible metal alone. Gold is important, but professional recycling also targets copper, silver, palladium, nickel, tin, aluminum, and other recoverable materials.

Gold-bearing areas may be found in:

• Gold fingers

• Processor socket contacts

• Memory connector contacts

• Communication ports

• Internal board-to-board connectors

• Selected industrial connectors

• Gold-tab BGA packages

• Microscopic bonding wires inside some semiconductor packages

Copper is normally the largest recoverable metal by weight. It is present in the internal PCB layers, signal traces, power planes, grounding layers, transformers, inductors, connector structures, and voltage-regulation circuits.

Silver may be present in solder alloys, electrical contacts, relays, switches, and selected component terminations. Palladium may occur in certain multilayer ceramic capacitors and older electronic components. Nickel is frequently used as an underplating or barrier layer beneath gold and other connector finishes.

The recycling value of an A board therefore depends on the entire material profile. Dense IC coverage, high-quality connectors, substantial copper construction, large processor areas, and specialized industrial components can collectively support A classification.

Ohata A Grade Classification and Identification Guide

The first rule of A identification is that classification must be based on the actual circuit board delivered for inspection. Product names and photographs may assist identification, but the physical material is the final basis for purchasing.

1. Identify the Original Industry Application

A Grade boards commonly originate from equipment designed for advanced data processing, automation, communications, industrial control, precision manufacturing, robotics, or medical applications.

Strong A candidates include boards removed from:

• Industrial automation systems

• PLC racks and CPU modules

• CNC machines

• Robotic control systems

• Medical analysis or diagnostic equipment

• Enterprise server systems

• Professional telecommunications systems

• Industrial network equipment

• Apple laptop computers

• High-density storage devices

• Professional embedded-control systems

However, industry use alone does not automatically guarantee the grade. A low-density power board from an industrial machine may not qualify as A. Inspectors must evaluate the actual component density and construction.

2. Examine Integrated-Circuit Density

A boards normally have substantial semiconductor coverage. Full-IC boards with approximately 90 percent or greater IC coverage are specifically recognized within the Ohata A standard.

The inspector should look for:

• Numerous BGA packages

• Multiple controller ICs

• Dense memory-chip coverage

• Large digital-processing devices

• Limited unused PCB area

• Complex component placement on one or both sides

A board containing only a few small ICs, many empty areas, and mostly passive components is less likely to qualify.

3. Check Processor and BGA Areas

Large CPU interfaces and valuable BGA devices are important indicators. Multi-processor PGA server motherboards with two or more large CPU sockets are listed as A examples. The processor sockets should generally be present and structurally intact.

For boards without removable processor sockets, inspectors should identify the main BGA processors, chipsets, memory controllers, communication processors, or specialized industrial controllers. Removed BGA chips may leave exposed pad arrays or visibly empty component footprints. Such removal reduces material value and may cause rejection or downgrade.

4. Inspect Gold-Plated Contacts and Connectors

Gold-bearing contacts support classification, but they must be considered together with the whole board. Inspectors should examine:

• Edge fingers

• M.2 or mini-card contacts

• CPU socket contacts

• Memory sockets

• High-density industrial connectors

• Backplane connectors

• Telecom interfaces

• Board-to-board connectors

A small board can still qualify as A when its design and listed product category support that classification. For example, certain WiFi or M.2 boards with gold fingers and SATA hard-drive controller boards are specifically included in the A list even though they are physically smaller than industrial or server boards.

5. Evaluate Board Quality and Complexity

Premium multilayer construction, dense routing, specialized connectors, extensive power regulation, and professional component selection are positive indicators. Inspectors should compare the board with ordinary desktop, peripheral, and appliance boards rather than relying only on its dimensions.

A large board is not necessarily valuable if it has low component density. Conversely, a small, densely populated controller board may have better recovery value than a much larger low-grade power board.

6. Confirm Completeness and Condition

An A candidate should retain the components that create its expected recycling value. Important processors, chipsets, BGA packages, memory devices, sockets, and gold-bearing connectors should not be intentionally removed.

Missing detachable accessories do not always reduce the intrinsic grade. Heavy steel housings, complete machine frames, oversized aluminum assemblies, batteries, and unrelated wiring may need to be removed before weighing. However, original electronic components fixed to the PCB should generally remain intact.

Recoverable Materials, Buying Standards, and Handling

Recoverable Materials

Professional processing of A Grade boards is intended to separate and recover useful material fractions while minimizing waste.

The principal recoverable materials include:

Copper: Found throughout internal PCB layers, electrical traces, transformers, inductors, grounding areas, and power-delivery circuits.

Gold: Found in edge contacts, processor sockets, memory connectors, communication interfaces, selected BGA structures, and some IC bonding wires.

Silver: Found in solder, contacts, switches, relays, conductive pastes, and selected component materials.

Palladium: Potentially present in multilayer ceramic capacitors and certain older or specialized components.

Nickel and tin: Commonly present in connector plating, component leads, solder coatings, and PCB surface finishes.

Aluminum and steel: Found in attached structures, shields, brackets, and heatsinks. These materials may be recyclable, but excessive attachments can affect the payable circuit-board weight.

Ohata Buying Standards

A board is purchased as A Grade only after inspection confirms that it meets the relevant classification characteristics. Final buying decisions may consider the material type, physical condition, quantity, completeness, and current market conditions.

Important buying requirements include:

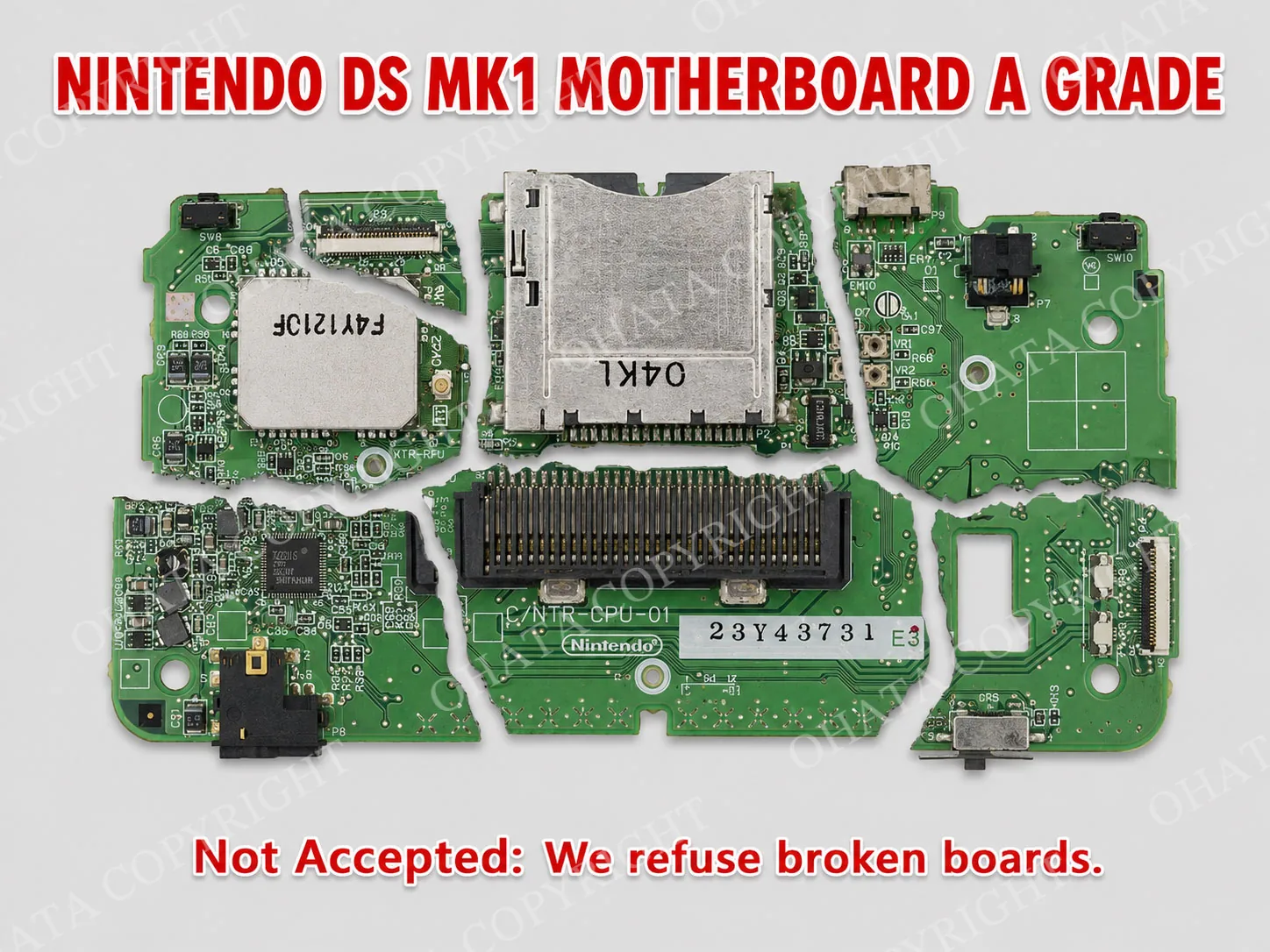

1. The main PCB must remain substantially complete.
   Boards cut into pieces, heavily broken, or missing large sections may not retain their expected A recovery profile.

2. Major semiconductor packages must remain installed.
   Removed CPUs, chipsets, BGA processors, memory packages, or valuable controller ICs can significantly reduce the board’s recoverable value.

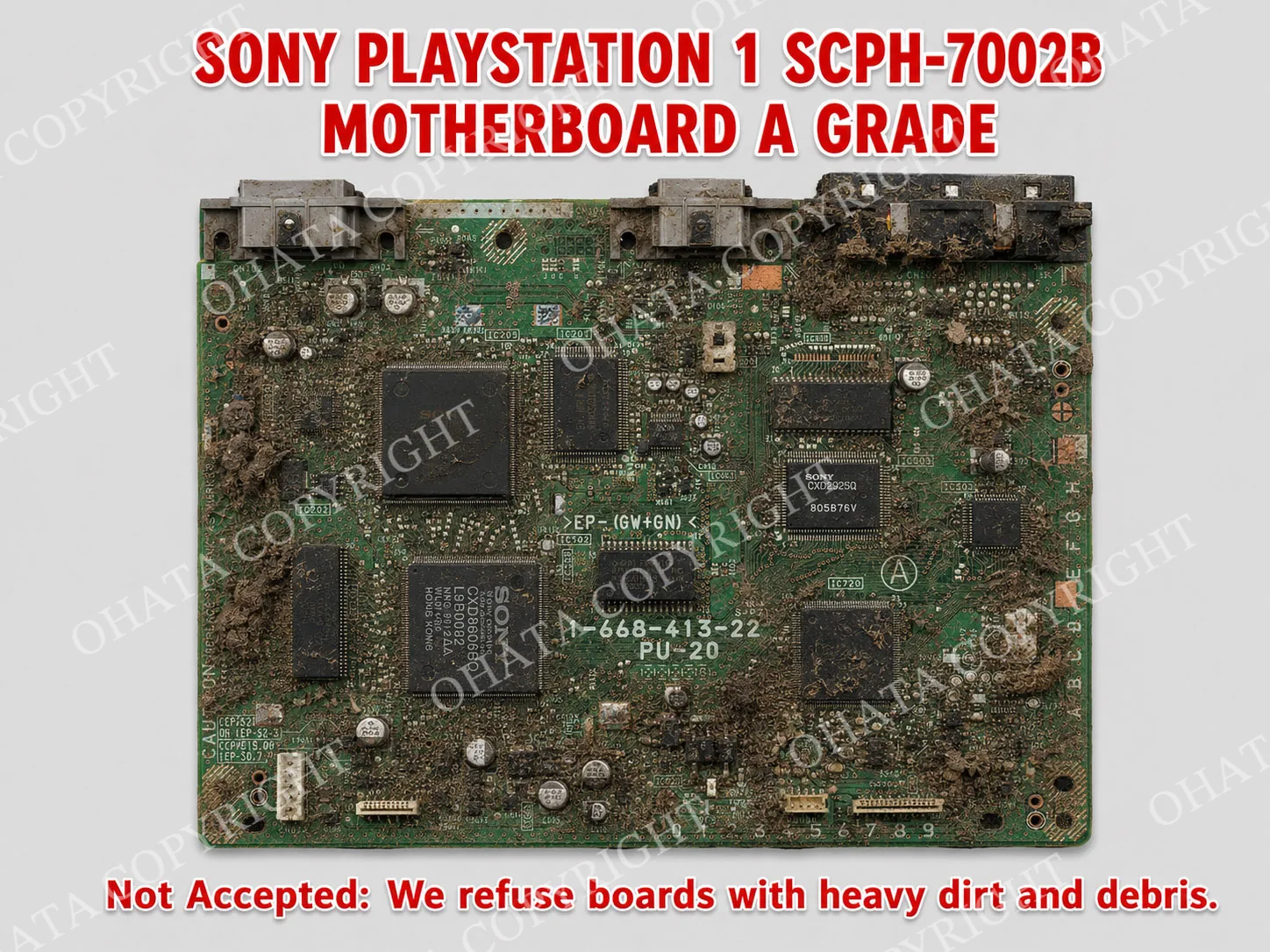

3. The material must be reasonably clean.
   Heavy mud, oil, chemicals, wet contamination, excessive dust deposits, or mixed debris can interfere with inspection and processing.

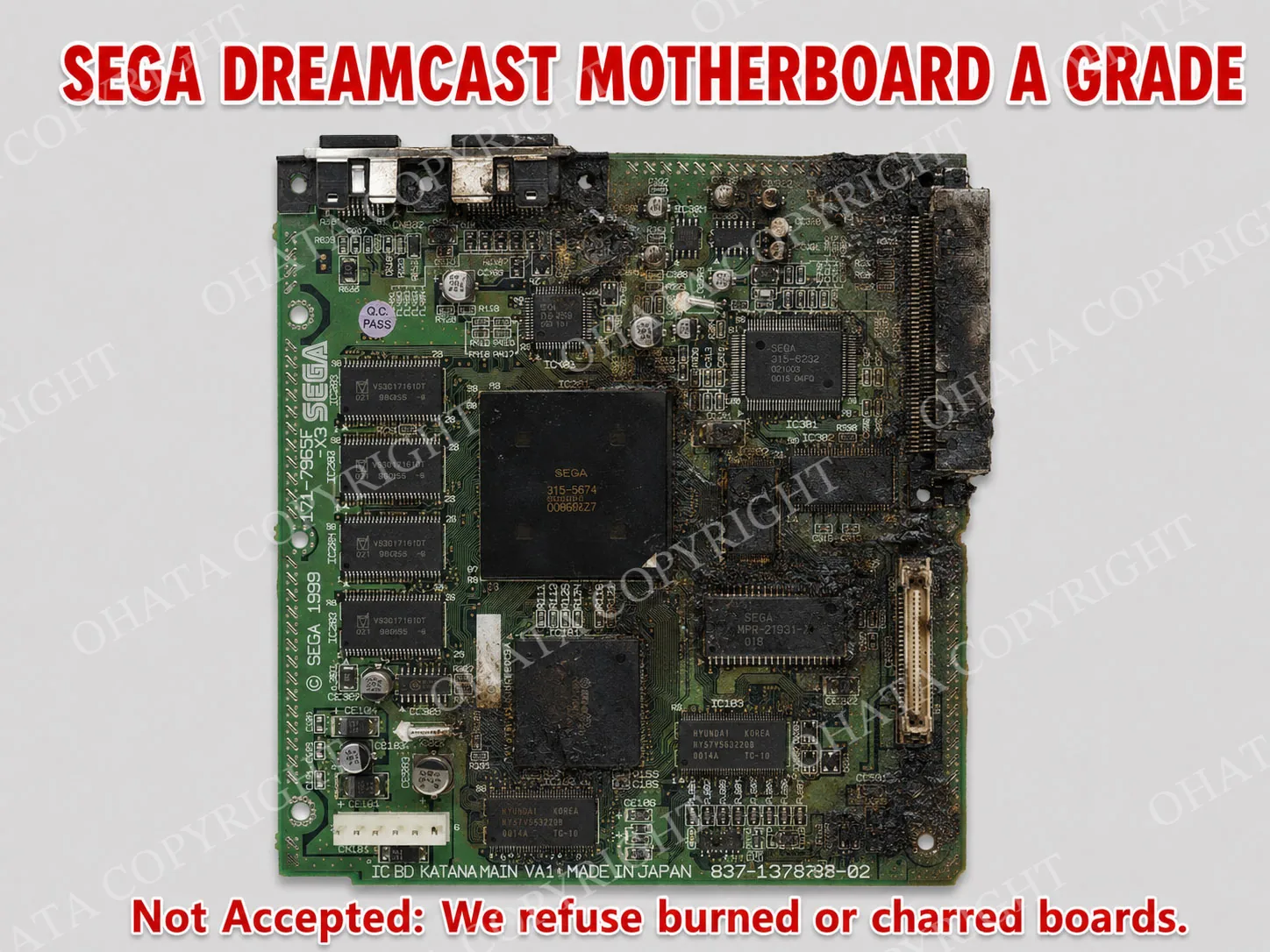

4. The board must not be severely burned.
   Light discoloration around a failed component may be evaluated individually, but boards that are extensively burned, carbonized, melted, or structurally damaged may be rejected or downgraded.

5. Hazardous contamination is not accepted.
   Materials exposed to unidentified chemicals, biological contamination, radioactive substances, or other hazardous residues require specialized handling and may fall outside normal purchasing standards.

6. Different grades should be separated.
   A boards should not be mixed with appliance boards, low-grade power boards, steel-heavy assemblies, or unrelated electronic waste. Mixed loads require additional sorting and may receive a lower combined valuation.

7. Batteries should be removed where required.
   Loose lithium batteries, leaking batteries, and large backup batteries should not remain mixed with circuit boards. Removal improves transportation safety and material handling.

8. Unnecessary non-board attachments should be separated.
   Large steel frames, plastic housings, cooling fans, heavy heatsinks, and cables may be removed when they are not part of the payable PCB category.

Recommended Handling

A boards should be stored in a dry location and protected from rain, mud, chemical exposure, and unnecessary physical damage. Small gold-finger boards and hard-drive boards should be packed in sealed containers or durable cartons so they are not lost during transportation.

Large industrial and server boards should be stacked carefully without excessive pressure on processor sockets or tall components. Anti-static packaging is useful when boards may still have reuse potential, although scrap-grade material mainly requires protection from moisture and mechanical destruction.

Sellers should separate similar material types before delivery. Recommended groups include Apple logic boards, PLC and CNC boards, industrial controllers, server motherboards, telecom boards, SATA hard-drive boards, and small gold-finger cards. Clear separation allows faster inspection and helps protect the A valuation.

Comparison and Official Ohata Classification

A Grade occupies an important position between the highest-value specialist boards and ordinary high-grade computer boards.

SS and other premium telecommunications grades generally contain exceptionally dense advanced networking components, multiple high-value processors, premium connectors, and stronger precious-metal concentration. S Grade may include valuable legacy computer boards with several ceramic processors or older non-SATA hard-drive boards containing historically valuable components.

A Grade is distinguished by advanced industrial, enterprise, medical, server, automation, and professional-control construction. It normally provides stronger component density and processing value than A Grade.

A Grade includes high-quality but generally less valuable materials such as non-Apple laptop motherboards, clean gold-finger expansion cards, large single-socket server boards, CD/DVD controller boards, backplane expansion boards, older NEC desktop boards, PCMCIA cards, and certain game-machine boards. The uploaded classification describes A Grade as having good IC density, substantial copper, and moderate gold plating, but generally lower precious-metal concentration than A.

B, C, and D Grades progressively include boards with lower semiconductor density, fewer valuable contacts, less complex construction, attached low-value hardware, or modern cost-reduced designs. Appliance boards contain simpler mixed-control electronics and should remain separated from A material.

Official Ohata Classification Statement

Under the Ohata Board Scrap Classification System, A Grade is an advanced recycling category for qualifying circuit boards that demonstrate the required combination of professional application, high integrated-circuit density, premium construction, valuable connectors, substantial semiconductor coverage, and strong recoverable material content.

The classification is not restricted to one specific model. Apple laptop logic boards, multi-CPU PGA server motherboards, PLC CPU boards, CNC controllers, industrial control boards, robotics boards, medical control boards, qualifying telecom boards, dense full-IC boards, SATA hard-drive boards, and eligible WiFi or M.2 boards may all receive the same A Grade purchasing category when their actual construction and condition satisfy the standard.

A recognized product name does not override physical inspection. Boards with removed chips, major missing sections, severe burning, hazardous contamination, excessive dirt, or mixed low-grade material may be downgraded or rejected.

Conversely, an uncommon or unidentified model may still qualify for A pricing when inspection confirms that it possesses the same essential features and expected recycling value as other accepted A materials.

The official purchasing principle is therefore clear:

A Grade pricing applies to all circuit boards that meet the verified Ohata A Grade standard, regardless of their individual brand or model. Final classification is determined by the board’s construction, component density, completeness, condition, recoverable-material profile, and current buying requirements.
