Introduction, Construction, Components, and Recycling Value
Introduction

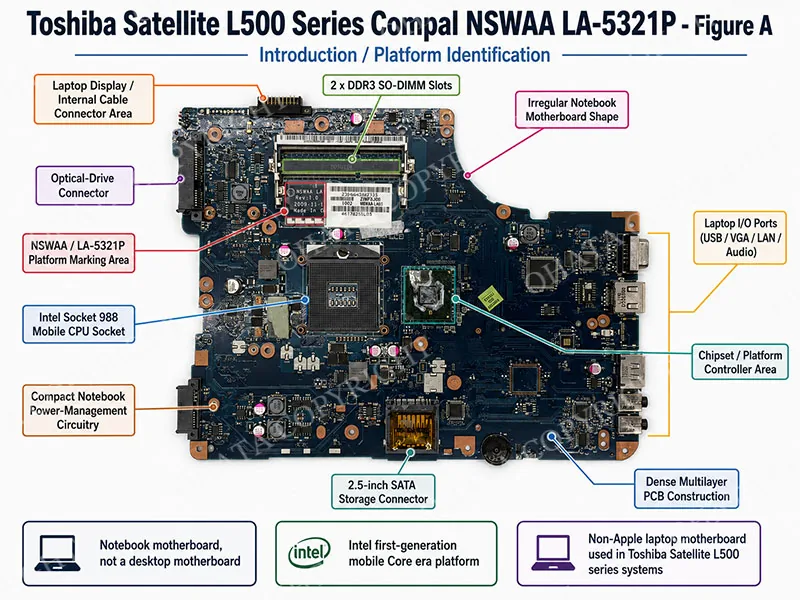

Toshiba Satellite is a broad laptop family rather than a single motherboard model. Boards removed from Satellite systems may differ in processor platform, chipset, memory generation, connector layout, board code, and physical shape. Accurate recycling identification therefore begins with the complete laptop model, the PCB part number or board code, the revision marking, and clear photographs of both sides. Under the Ohata Board Scrap Classification, complete non-Apple laptop motherboards commonly qualify as A Grade candidates, but the final grade is confirmed from the actual board's component density, major ICs, connectors, completeness, and condition
The board is identified by the NSWAA LA board marking and the LA-5321P family reference. Published schematic references identify this platform as Toshiba Satellite L500 series PCB: LA-5321P, manufacturer Compal, CPU Intel Socket 988, GPU UMA, and RAM DDR3. The same reference states that the schematic is for a motherboard marked NSWAA LA-5321P. Another repair reference identifies the product as Toshiba Satellite L500 Compal LA-5321P NSWAA NTWAA Rev. 1.0 schematic, confirming the Toshiba Satellite L500 / Compal LA-5321P identity.
This motherboard belongs to the consumer notebook generation that used removable Intel mobile processors, DDR3 notebook memory, 2.5-inch SATA storage, optical-drive interfaces, display connectors, card-reader sections, USB, VGA, HDMI or related display-output options depending on exact chassis, Ethernet, audio, battery charging, and fan control. It is an irregularly shaped laptop PCB rather than a rectangular desktop form factor board. It includes compact cable connectors, screw-mount holes, dense fine-pitch circuits, and power sections designed specifically for a Toshiba notebook enclosure.
From a recycling perspective, this board is valuable because laptop motherboards contain relatively high component density per unit weight. Even when physically smaller than desktop motherboards, laptop boards usually integrate the CPU area, chipset packages, SO-DIMM memory connectors, power-management ICs, embedded controller, display connector, storage connector, audio, network, USB, charging circuits, and sensor interfaces into a compact multilayer PCB. This type of construction is why non-Apple laptop motherboards are assigned to Ohata A Grade Board Scrap rather than B, C, or D Grade desktop categories.
Common Computer Brand and Practical Use
The LA-5321P NSWAA motherboard is normally associated with Toshiba Satellite L500-series notebook computers. Toshiba L500-1XP system references list a 15.6-inch Toshiba Satellite L500 notebook with Intel Core i3-330M processor, DDR3 SO-DIMM memory, SATA hard drive, Intel HM55 Express chipset with Intel Graphics Media Accelerator HD graphics, HDMI, eSATA, ExpressCard, card reader, webcam, and wireless networking.
The board is not intended for ordinary desktop hobbyist assembly because it does not use ATX mounting, a desktop I/O shield, standard desktop power connectors, or a modular desktop expansion layout. However, computer enthusiasts can still use the board in repair and experimental work. Typical enthusiast uses include restoring a Toshiba Satellite L500-family laptop, testing Socket G1 mobile CPUs, testing DDR3 SO-DIMM modules, diagnosing laptop power rails, building a bench-test notebook platform, studying Intel HM55-era laptop architecture, or creating an open-frame educational system. These uses require compatible notebook parts, including the correct charger input, power button board, cooling assembly, fan, display cable, keyboard interface, touchpad interface, speaker cable, storage cable, and BIOS-compatible CPU.
For recycling, the original laptop brand does not determine the grade by itself. The board’s grade is based on the complete electronic assembly: laptop form factor, mobile CPU socket, multilayer PCB, BGA chipset, memory connectors, fine-pitch cable connectors, power circuits, and overall component density.
CPU Socket and CPU Package Size
The CPU interface is Intel Socket 988, commonly associated with Socket G1 / rPGA988A-class first-generation mobile Core processors. The LA-5321P board reference identifies the CPU field as Intel Socket 988. Toshiba L500-1XP platform references list Intel Core i3-330M as a supported example CPU, and HP / Toshiba-era Socket G1-compatible CPUs commonly include Intel Core i3-330M, Core i3-350M, Core i5-430M, Core i5-450M, Core i5-520M, and related first-generation mobile Core processors.
The required CPU package size is 37.5 mm × 37.5 mm. Intel Core i3-330M specification references identify the processor as supporting PGA988 and list the rPGA package size as 37.5 mm × 37.5 mm. This is the correct size to use when confirming a removable Intel mobile CPU for this board.
This package-size confirmation is important for scrap sorting. The correct CPU is not an AMD Socket S1, AMD AM2/AM3, Intel LGA775, Intel LGA1156 desktop CPU, or soldered BGA-only processor. It is a removable Intel mobile rPGA package. The board should be graded under the requested assumption that a compatible CPU is installed. A CPU-installed laptop motherboard is more valuable than a CPU-missing one because the processor contributes silicon, substrate material, contact lands or pins, internal metal layers, package metals, and precious-metal-bearing semiconductor structures.
If the CPU is missing, the board remains identifiable as a Toshiba Satellite L500 / LA-5321P laptop motherboard, but its purchase value should be lower. If the Socket 988 socket is cracked, burned, bent, corroded, or removed, the value reduction is more serious because the socket contact system is part of the recoverable material value.
Chipset and Graphics Configuration
The LA-5321P reference identifies the graphics configuration as UMA, which means unified memory architecture. In practical terms, this indicates that the board relies on integrated platform graphics rather than a removable graphics card. A Toshiba L500-1XP example lists Intel HM55 Express chipset with Intel Graphics Media Accelerator HD graphics and shared memory.
The motherboard therefore should not be sorted as a separate graphics card. Its graphics function is part of the notebook motherboard platform. If a specific LA-5321P revision or related NSWAA/NTWAA variant includes a separate graphics BGA package, that package must remain attached because it is a major semiconductor component. For the UMA version, the key semiconductor packages are the mobile CPU and the platform controller / chipset area. The board should be inspected for missing large BGA devices, damaged chipset packages, or heavily scraped thermal-paste areas before final buying.
Memory Subsystem
The board uses DDR3 notebook SO-DIMM memory. Toshiba Satellite L500 DDR3 memory references list the device type as laptop, maximum memory capacity as 8 GB, two slots, DDR3 DRAM type, 204-pin SO-DIMM form factor, DDR3-8500 / PC3-1066 speed class, and 1.5 V non-ECC memory.
The two SO-DIMM sockets are important material-recovery features. Each connector contains many fine contacts and solder joints. If memory modules are present, they are usually removed and sold or processed separately as RAM scrap. The motherboard itself should retain the SO-DIMM sockets. Removed, cracked, burned, or heavily corroded memory sockets reduce connector completeness and can reduce the board’s buying value.
Storage, Display, and Notebook I/O
The LA-5321P motherboard includes laptop-specific storage, display, power, and peripheral interfaces. Toshiba L500-1XP references list SATA hard drive support, DVD drive, HDMI, eSATA, ExpressCard slot, card reader, integrated camera and microphone, and wireless networking in the system configuration. These laptop features are implemented through a combination of onboard connectors, daughterboard interfaces, cable connectors, and controller ICs.
The board contains external ports such as VGA, HDMI-class video output, USB, Ethernet, audio, and possibly eSATA depending on chassis variant. It also contains internal connectors for LCD display, keyboard, touchpad, optical drive, hard drive, speakers, fan, battery, and power-control boards. These fine-pitch connectors are important for A Grade laptop-board value because they add connector metal, solder, and compact electronic density.
Construction and Recycling Value
The LA-5321P is a compact multilayer notebook motherboard. It includes internal copper layers, power planes, signal routing, BGA chipset packages, mobile CPU socket contacts, SO-DIMM contacts, storage connectors, display connectors, embedded-controller circuitry, power-management ICs, inductors, MOSFETs, capacitors, BIOS flash, and rear I/O ports.
The board’s recycling value comes from its density rather than its physical size. A laptop board has less open area than many desktop boards and uses numerous small, high-value surface-mounted components. Compared with ordinary D Grade consumer desktop motherboards, this board has more valuable laptop-style integration. Compared with Apple logic boards, however, it has a more conventional removable CPU and lower overall compactness. Therefore, it is correctly placed in Ohata A Grade, not A+ Grade.
Ohata A Grade Classification, Identification Guide, and Laptop Motherboard Types
Ohata A Grade Classification

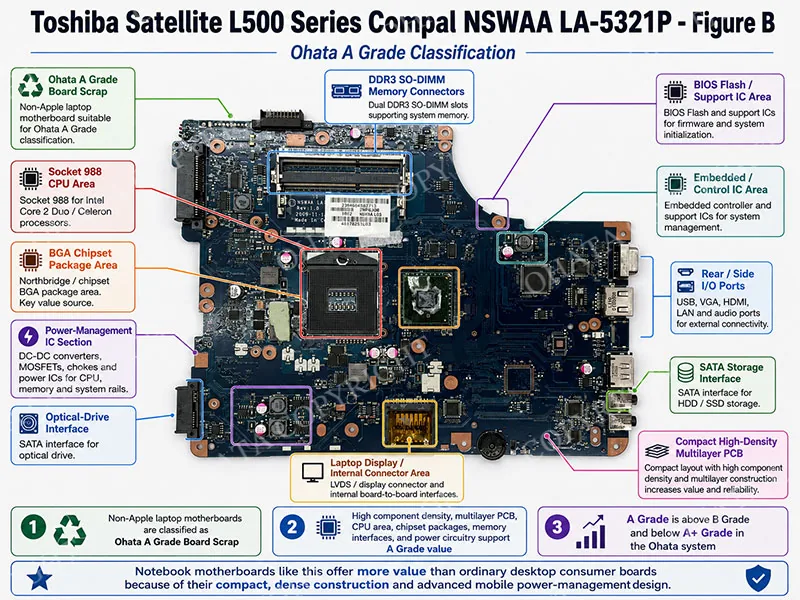

The official Ohata classification for this motherboard is:
Ohata Board Scrap Classification: A Grade Board Scrap
This classification assumes that the compatible Intel Socket 988 CPU is installed and that the board remains complete, clean, dry, and structurally intact.
The Ohata Board Grade Class places A Grade below A+ Grade and above B Grade. The general grade-class standard identifies A Grade as high-grade computer boards and specifically includes laptop motherboards excluding Apple logic boards, large single-socket server motherboards, clean gold-finger expansion cards, CD/DVD controller boards, NEC desktop motherboards from earlier generations, and backplane expansion boards. The detailed A Grade standard further explains that non-Apple laptop motherboards are one of the largest A Grade categories because they combine compact multilayer PCB construction, CPU or processor areas, BGA chipset packages, memory interfaces, power-management ICs, storage interfaces, audio/network circuits, embedded BIOS, and higher component density than many desktop boards.
The LA-5321P fits the A Grade laptop-board category directly. It is a non-Apple notebook motherboard with mobile CPU socket, DDR3 SO-DIMM slots, BGA chipset platform, laptop I/O connectors, storage connectors, power-management circuitry, and compact multilayer construction.
Why This Board Is Not A+ Grade
A+ Grade is used for more advanced industrial and enterprise electronics, Apple logic boards, PLC CPU modules, CNC controllers, robotics control systems, medical control boards, industrial communication boards, and large enterprise server boards with exceptional IC density and premium construction.
The LA-5321P is a Toshiba / Compal notebook motherboard, not an Apple logic board and not an industrial automation board. It has good laptop density, but it does not have the extremely compact Apple-style layout, soldered high-density Apple logic-board architecture, industrial communication interfaces, or enterprise multi-socket server structure required for A+ Grade. It is therefore correctly classified as A Grade.
Why This Board Is Higher Than B Grade
B Grade includes medium-value boards such as desktop motherboards with medium-value CPU socket designs, lower-grade telecommunications boards, embedded controller boards, and peripheral interface boards. The LA-5321P should not be classified as B Grade because it is not a desktop board with ordinary ATX expansion architecture. It is a notebook motherboard, and the Ohata A Grade standard specifically includes non-Apple laptop motherboards as A Grade material.
The compactness of the PCB, fine-pitch connectors, SO-DIMM interface, battery/power control circuitry, display connector, and dense laptop layout support the higher grade.
Why This Board Is Not C or D Grade
C Grade is used for standard desktop motherboards, graphics cards, interface cards, and other standard-grade consumer electronic boards with moderate component density. D Grade is used for lower-value integrated desktop motherboards, modern cost-optimized consumer desktop boards, AMD AM/FM platform boards, and peripheral cards with lower precious-metal concentration.
This board is neither a standard desktop motherboard nor an AMD AM/FM desktop board. It is a laptop motherboard. Even though it is not an Apple logic board, it has notebook-style density, mobile CPU architecture, SO-DIMM slots, and dense cable connectors. Therefore, downgrading it to C or D Grade would undervalue its construction and material profile.
Identification Guide
Step 1 – Confirm the Board Marking
Look for the NSWAA LA marking and the LA-5321P platform reference. Published board references identify the project as Compal LA-5321P Rev. 1.0 and state that the schematic is for a motherboard marked NSWAA LA-5321P.
Step 2 – Confirm Toshiba Satellite L500-Series Application
The board should match the Toshiba Satellite L500 notebook generation. Published references identify Toshiba Satellite L500 Compal LA-5321P NSWAA NTWAA Rev. 1.0, and Toshiba L500 examples show Intel mobile CPU, DDR3 SO-DIMM memory, SATA hard drive, HDMI, eSATA, ExpressCard, and notebook-specific I/O.
Step 3 – Confirm Intel Socket 988
The CPU socket should be an Intel mobile Socket 988 / Socket G1-class PGA socket. The LA-5321P reference lists CPU: Intel Socket 988. The matching removable CPU package size is 37.5 mm × 37.5 mm.
Step 4 – Confirm DDR3 SO-DIMM Memory
The board should have laptop SO-DIMM slots rather than desktop DIMM slots. Toshiba Satellite L500 DDR3 references list two 204-pin DDR3 SO-DIMM slots and up to 8 GB memory support for the DDR3 L500 family.
Step 5 – Confirm Laptop I/O
Look for notebook connectors, including display cable connector, fan connector, storage connector, optical-drive connector, keyboard/touchpad-related connectors, rear USB, VGA, HDMI or related video output, LAN, and audio. These connectors distinguish the board from desktop motherboards.
Step 6 – Confirm Complete Laptop Board Condition
A complete A Grade board should retain CPU socket, CPU, chipset package, SO-DIMM sockets, BIOS, power-management circuits, storage connectors, display connectors, audio/LAN sections, and rear I/O connectors. Missing large ICs or broken connectors reduce value.
Recoverable Materials, Buying Standards, and Handling
Recoverable Materials
The LA-5321P motherboard contains the recoverable material profile expected from A Grade laptop motherboard scrap. The A Grade standard identifies laptop motherboards as valuable because of multilayer PCB construction, integrated circuit density, CPU socket areas, memory interfaces, power-management circuits, gold-plated connector contacts, and compact electronic design.
Copper is present in internal PCB layers, power planes, ground planes, CPU voltage-regulation circuits, inductors, display routing, memory routing, USB routing, SATA routing, LAN magnetics, and connector pins.
Gold may be present in CPU socket contacts, CPU package structures, SO-DIMM contacts, fine-pitch cable connectors, USB contacts, LAN connector contacts, test pads, and bond wires inside integrated circuits.
Silver may be present in selected solder materials, contacts, and semiconductor structures.
Palladium may be present in multilayer ceramic capacitors distributed across the board.
Tin and nickel are found in solder alloys, plated connector materials, shielding, component leads, and socket underplating.
Aluminum and copper cooling hardware may be attached through heatsinks or heat pipes. These are recyclable but can be separated from the board when the major electronic components remain intact.
Buying Standards
A preferred A Grade LA-5321P laptop motherboard should have:
Compatible Intel Socket 988 CPU installed when CPU-included material is required.
Socket 988 socket intact.
Chipset package present and undamaged.
Any graphics package present if the board variant includes one.
SO-DIMM sockets present.
BIOS flash present.
Embedded controller and power-management ICs present.
USB, LAN, audio, VGA, HDMI/eSATA, display, fan, storage, keyboard, touchpad, and speaker connectors present.
PCB structurally complete.
Board dry and reasonably clean.
No severe corrosion.
No burn damage.
No water damage.
No battery leakage damage.
No excessive component harvesting.
No oil, paint, adhesive, chemical, or heavy thermal-paste contamination.
No mixing with lower-grade appliance boards, desktop boards, batteries, wires, plastics, or metal scrap.
Electronic functionality is not required. The board does not need to boot or pass diagnostics for recycling. The grade is based on physical construction, CPU presence, board completeness, component density, and contamination condition.
CPU Completeness and Value
The CPU should remain installed whenever the purchase category expects laptop motherboard with CPU material. The correct CPU package size is 37.5 mm × 37.5 mm, and the socket family is Intel Socket 988 / Socket G1-class mobile rPGA.
A CPU-installed board is more valuable because the processor adds recoverable semiconductor material, package substrate, internal metal layers, contact materials, and precious-metal-bearing structures. A CPU-missing board still contains recoverable value, but it should be priced lower. A socket-damaged board loses additional value because the socket contact system is a major connector-based recovery point.
Acceptable Removals
Certain removals normally do not change the A Grade identity if the motherboard itself remains complete:
CPU heatsink.
Cooling fan.
Heat pipe.
Loose SO-DIMM memory modules.
Wi-Fi card.
Hard drive.
Optical drive.
Battery.
LCD panel.
Keyboard.
Touchpad.
Speakers.
Laptop casing.
Screws, brackets, and loose cables.
The A Grade standard allows removable accessories such as cooling fans, heatsinks, mounting hardware, plastic covers, and loose wire harnesses to be removed, while permanent electronic components should remain attached.
Value-Reduction Conditions

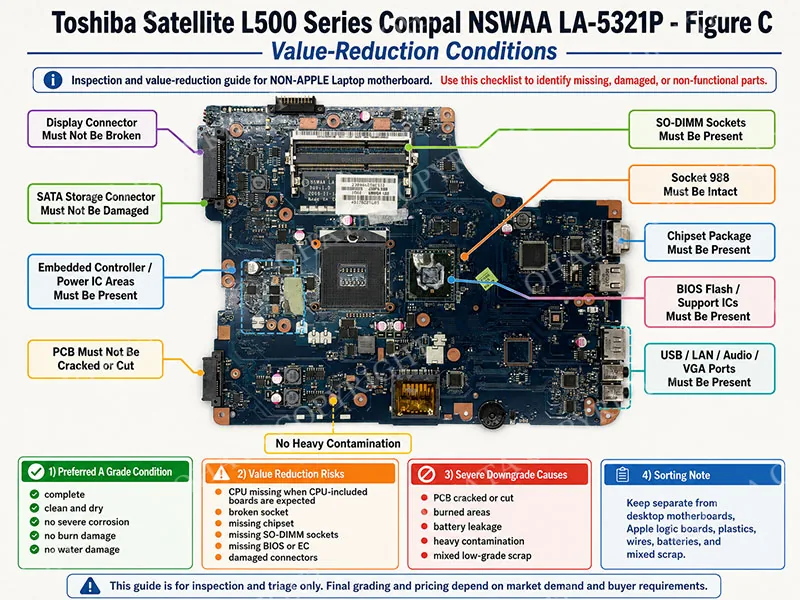

The following conditions reduce value:
CPU missing when CPU-installed boards are expected.
Socket 988 socket broken, burned, corroded, or removed.
Chipset package removed.
Graphics package removed on a discrete-graphics variant.
SO-DIMM sockets removed.
BIOS flash missing.
Embedded controller removed.
Power-management ICs harvested.
Display connector broken.
Storage connector damaged.
USB, LAN, audio, VGA, or HDMI/eSATA ports missing.
PCB cracked, cut, snapped, or drilled through active circuitry.
Severe corrosion or oxidation.
Burned or carbonized areas.
Water damage or delamination.
Battery leakage.
Heavy oil, glue, paint, chemical, or thermal-paste contamination.
Mixed lots containing lower-grade boards, plastics, batteries, wires, steel, or trash.
Rejection Conditions
A board may be rejected from sorted A Grade laptop material when it is too damaged or too incomplete for normal inspection. Serious rejection or severe downgrade conditions include:
PCB cut into pieces.
CPU socket removed.
Main chipset removed.
Heavy BGA harvesting.
Severe burn damage.
Large delaminated regions.
Corrosion across CPU or chipset areas.
Chemical contamination.
Board mixed in miscellaneous waste where inspection cannot confirm the grade.
Missing most connectors and major ICs.
A clean, complete, CPU-installed LA-5321P motherboard is A Grade Board Scrap. A stripped, broken, contaminated, or CPU-missing board has lower value.
Handling and Storage
Store the motherboard flat, dry, and separated from heavy scrap. Avoid stacking it under desktop power supplies, motors, transformers, steel parts, batteries, or heavy mixed electronics. Laptop boards contain fine-pitch connectors and BGA packages that are easily damaged by bending, crushing, moisture, and corrosion.
CPU-installed boards should be separated from CPU-missing boards. A Grade laptop motherboards should also be separated from Apple A+ logic boards, B Grade desktop boards, C Grade standard boards, D Grade integrated desktop boards, appliance boards, power supply boards, wire bundles, batteries, and plastics. Clean sorting preserves value and reduces grading disputes.
Comparison, and Official Ohata Classification
Comparison with Apple Logic Boards
Apple laptop logic boards usually receive A+ Grade because they have extremely compact layouts, very high IC density, dense BGA processor and memory packaging, premium multilayer PCB construction, and proprietary Apple design. The LA-5321P is a valuable non-Apple laptop motherboard, but it uses a more conventional notebook layout with removable CPU and SO-DIMM memory. It is therefore A Grade, not A+ Grade.
Comparison with Desktop Motherboards
Desktop motherboards are larger and use standard desktop expansion layouts. They often include full-size DIMM slots, PCI Express slots, SATA ports, and ATX power connectors. The LA-5321P is a laptop board with SO-DIMM sockets, display cable connectors, battery/power control circuits, laptop rear I/O, and a proprietary notebook shape. A Grade is more appropriate than desktop B, C, or D grades.
Comparison with B Grade Boards
B Grade boards include medium-grade desktop motherboards, peripheral interface boards, lower-grade telecom boards, and embedded controller boards. The LA-5321P is a laptop motherboard, and non-Apple laptop motherboards are explicitly included in A Grade. It should not be mixed with B Grade desktop motherboards when complete.
Comparison with Appliance Boards
Appliance boards control motors, pumps, heaters, relays, sensors, compressors, and appliance interfaces. This motherboard is a notebook computing board with a CPU socket, chipset, SO-DIMM memory, SATA, USB, LAN, audio, display, and notebook power-management circuits. It should not be mixed with appliance board scrap.
Official Ohata Classification Claim
The Toshiba Satellite L500 Series Compal NSWAA LA-5321P motherboard is classified as:
Ohata Board Scrap Classification: A Grade Board Scrap
This classification is based on the following confirmed characteristics:
Non-Apple laptop motherboard.
Toshiba Satellite L500-series application.
Compal LA-5321P Rev. 1.0 platform.
NSWAA LA-5321P board marking.
Intel Socket 988 / Socket G1-class CPU interface.
37.5 mm × 37.5 mm compatible mobile CPU package size.
Assumed compatible CPU installed.
DDR3 SO-DIMM memory architecture.
Two 204-pin DDR3 SO-DIMM slot configuration typical of the Toshiba L500 DDR3 family.
Intel HM55 / first-generation mobile Core-era platform examples.
UMA integrated graphics configuration in the LA-5321P reference.
Laptop storage, display, USB, LAN, audio, and power-management interfaces.
Compact notebook PCB shape with fine-pitch connectors.
BGA chipset and controller circuitry.
Recoverable copper, CPU socket contacts, SO-DIMM contacts, BGA semiconductor packages, IC bond-wire material, solder, nickel-plated connectors, MLCC-related palladium, and limited gold-bearing contact surfaces.
The A Grade classification assumes that the motherboard is complete, clean, dry, structurally intact, and includes the CPU. If the CPU is missing, chipset packages are removed, the Socket 988 socket is damaged, SO-DIMM slots are harvested, connectors are broken, the PCB is cracked, or the board is corroded, burned, water damaged, chemically contaminated, or mixed with miscellaneous scrap, the buying value may be reduced or the board may be rejected from the sorted A Grade laptop motherboard category.
