ECS GeForce6100SM-M V1.0 Desktop Motherboard Scrap Buying Conditions

At Ohata Resource Canada Inc., we purchase ECS GeForce6100SM-M V1.0 Desktop Motherboard Scrap from electronic recyclers, computer recycling companies, IT asset disposition providers, refurbishers, and industrial scrap suppliers. To ensure fair pricing and efficient processing, all motherboards must meet our buying requirements before shipment. The following buying conditions are based on the physical characteristics shown in the reference images and our internal circuit board grading standards.

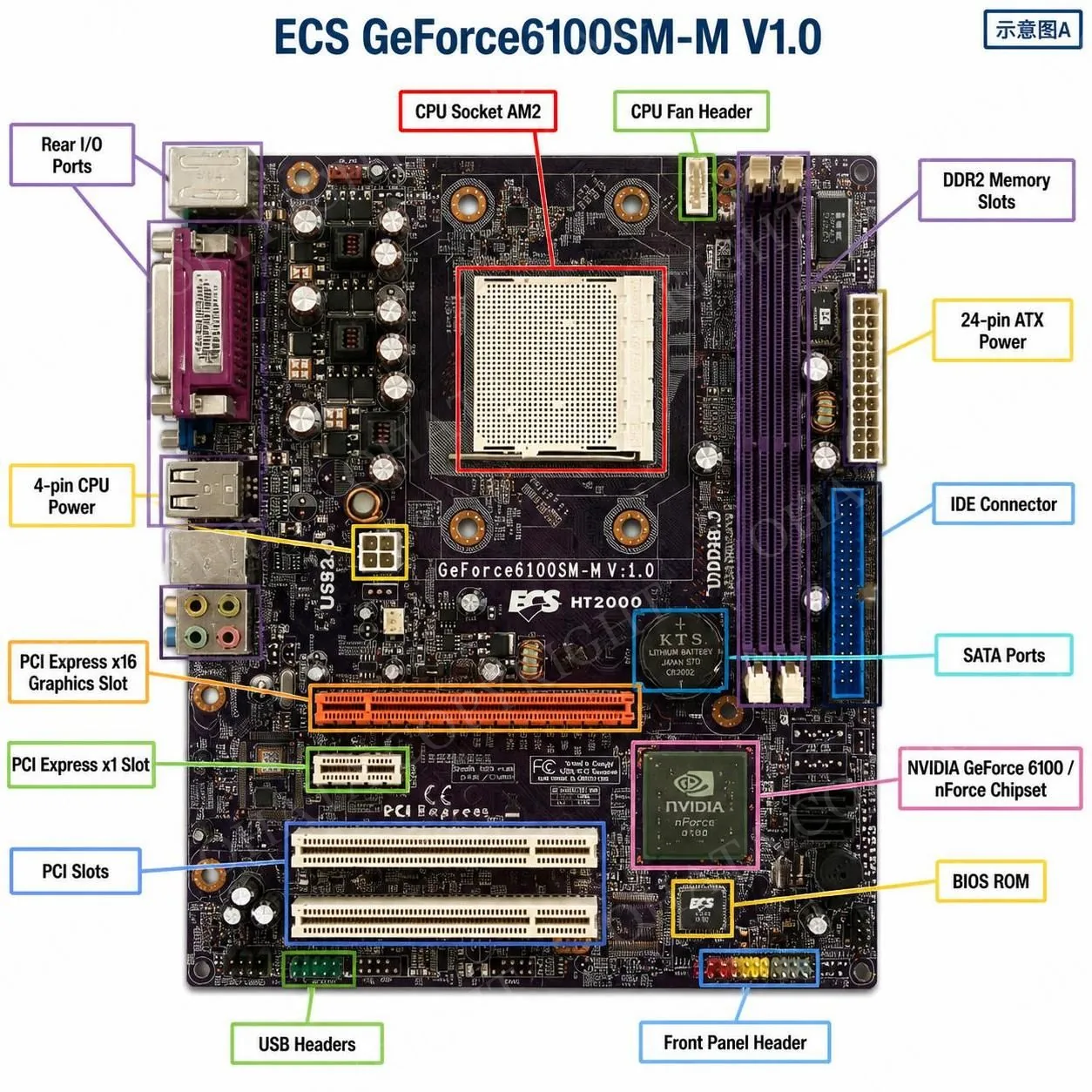

The ECS GeForce6100SM-M V1.0 Desktop Motherboard is an AMD-based micro-ATX motherboard featuring an AMD Socket AM2 (940-pin) processor socket, integrated NVIDIA GeForce 6100 graphics chipset, DDR2 memory slots, PCI Express expansion slot, PCI slots, SATA connectors, and a complete rear I/O panel. According to Ohata's Circuit Board Scrap Classification, AMD AM and FM socket desktop motherboards are classified as D Grade Desktop Motherboard Scrap. Complete boards with all major components intact receive the highest evaluation within this grade.

CPU Socket Must Remain Installed

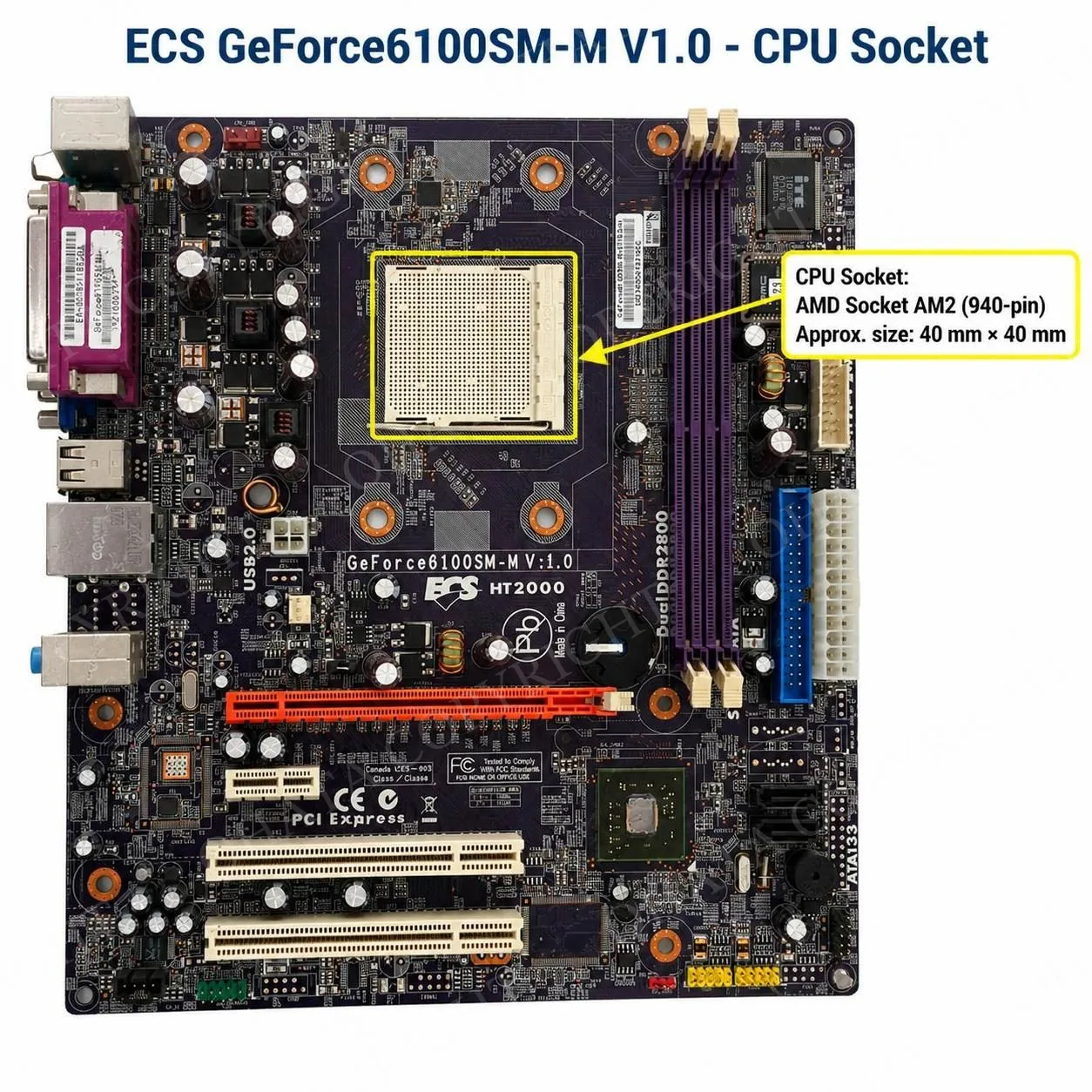

One of the most important buying conditions is that the original AMD Socket AM2 CPU socket remains attached to the motherboard. As shown in the first reference image, the white 940-pin CPU socket is located near the center of the board and measures approximately 40 mm × 40 mm.

The CPU socket must be complete, securely mounted, and free from major physical damage. The locking lever should remain attached and operational, while the socket body should not be cracked, melted, or broken. Although the processor itself is not required, the socket assembly must remain installed because it contributes to the board's recycling value.

Motherboards with missing CPU sockets, damaged socket housings, or sockets removed during dismantling may be rejected or purchased at a significantly reduced value.

Chipset IC Must Not Be Removed

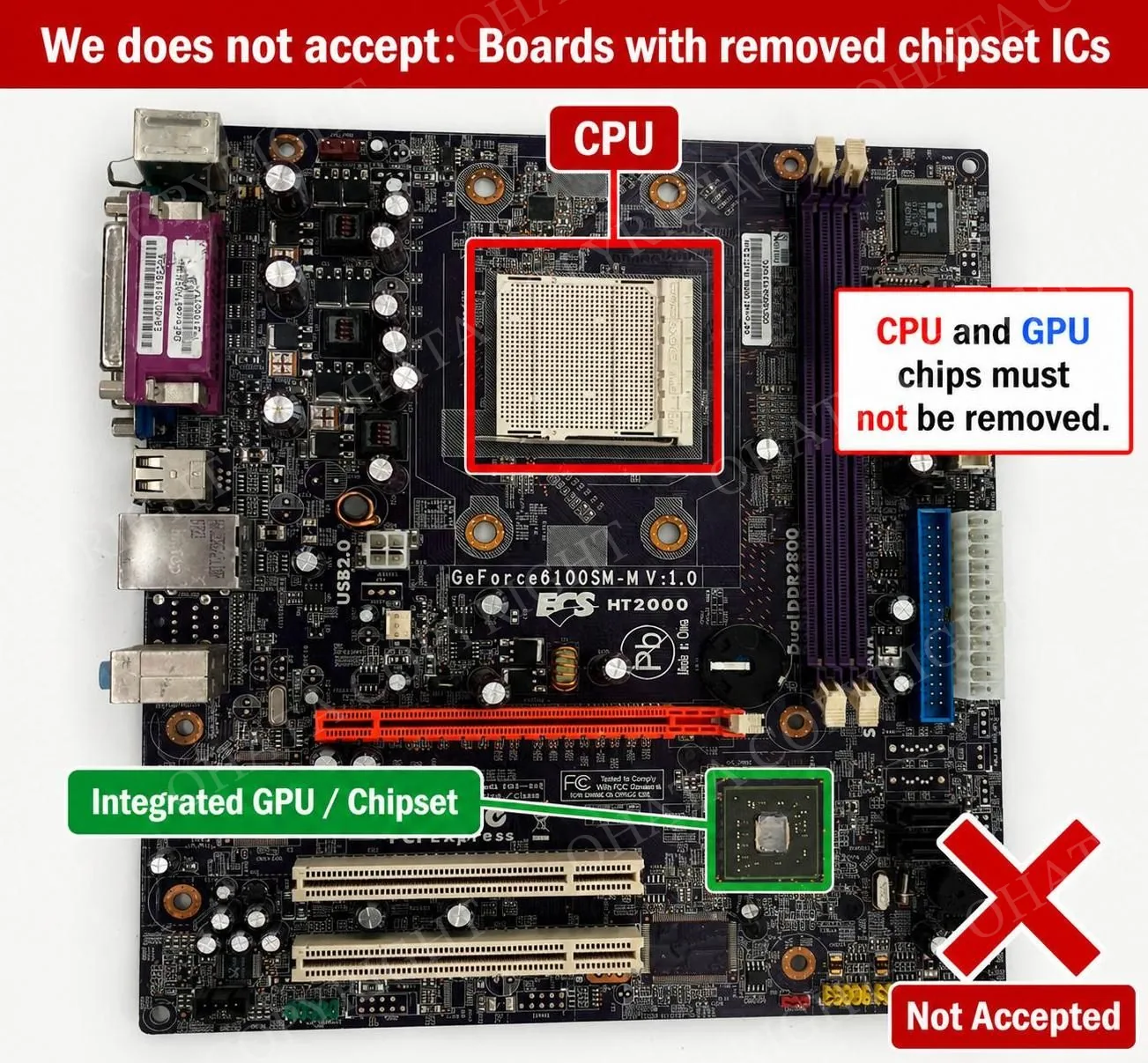

The second reference image highlights one of our most important purchasing requirements. The integrated NVIDIA GeForce 6100 chipset, located near the lower-right area of the motherboard, must remain attached to the PCB.

We do not accept ECS GeForce6100SM-M V1.0 motherboards that have had the chipset removed. Missing BGA chipset ICs reduce the recoverable precious metals and significantly decrease the recycling value of the board.

Boards with empty solder pads, visible pry marks, excessive heat damage, or evidence of chip harvesting will not qualify as complete motherboard scrap. We strongly recommend that suppliers do not remove or salvage chipset ICs before shipment.

Printed Circuit Board Must Be Complete

The motherboard PCB should remain in its original factory shape without major physical damage. Complete printed circuit boards are easier to process and generally receive higher buying prices.

We accept normal cosmetic wear, including minor scratches, dust, discoloration, and small surface stains resulting from regular computer use. However, we do not accept boards that have been cut into pieces, broken across multiple sections, severely warped, burned, or intentionally modified.

Motherboards should retain all mounting holes and original board dimensions. Heavy corrosion, fire damage, or extensive liquid damage may also reduce acceptance.

Rear I/O Connectors Should Remain Attached

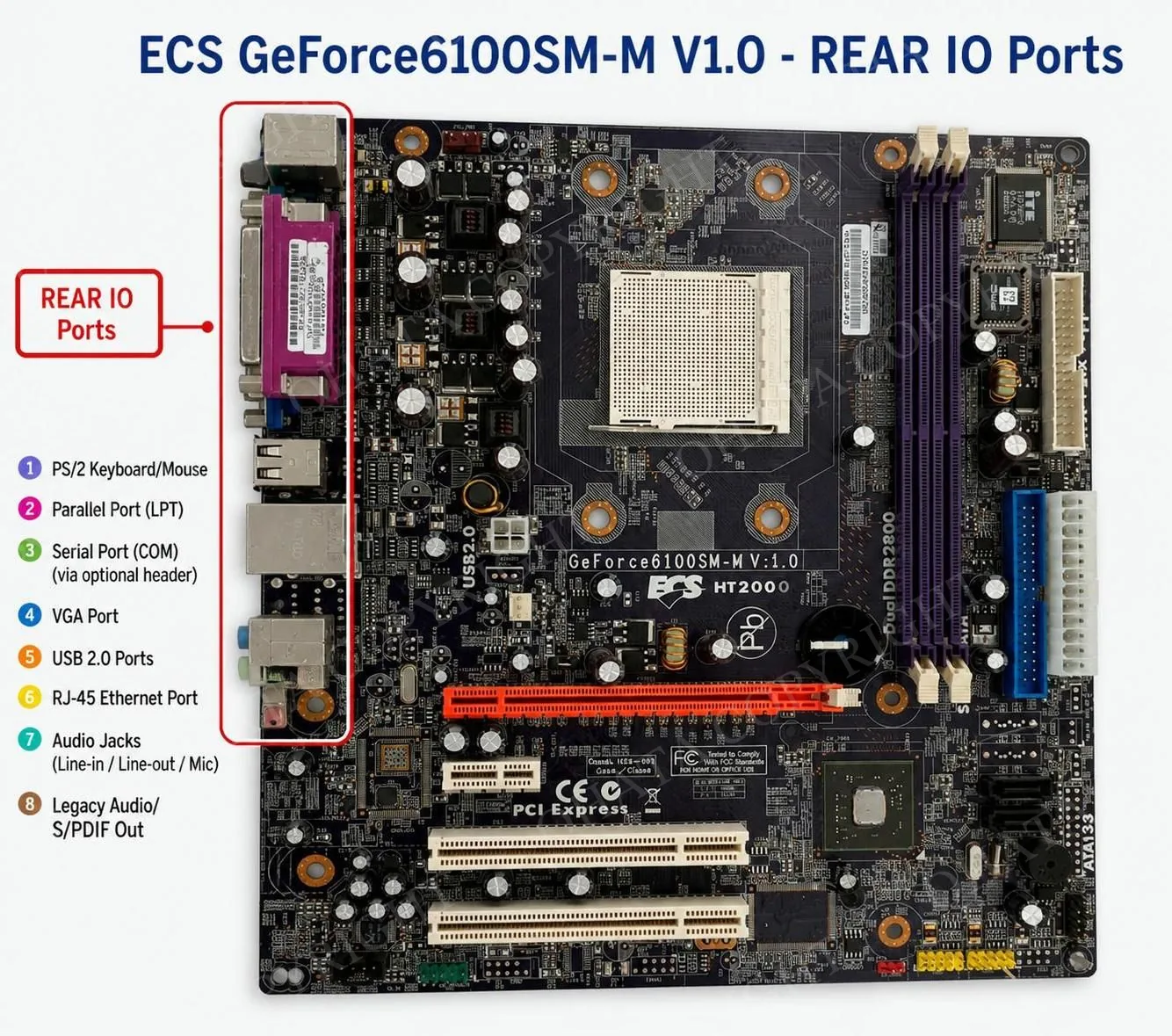

As illustrated in the third reference image, the ECS GeForce6100SM-M V1.0 includes several valuable rear I/O connectors. These connectors should remain attached whenever possible because they contribute additional recoverable metals and improve the overall condition of the motherboard.

The rear I/O assembly includes:

• PS/2 Keyboard and Mouse port
• Parallel (LPT) port
• VGA display connector
• USB 2.0 ports
• RJ-45 Ethernet LAN port
• Audio input and output jacks
• Legacy audio or S/PDIF connector

Although minor damage to an individual connector may be acceptable, motherboards with numerous missing rear connectors may receive a lower buying price.

Memory Slots and Expansion Slots

The motherboard should retain its original expansion slots and memory sockets. The four DDR2 DIMM memory slots should remain securely attached without severe breakage.

The PCI Express x16 graphics slot, PCI expansion slots, SATA ports, IDE connector, and power connectors should also remain installed. These components contain recoverable metals and contribute to the completeness of the motherboard.

Boards with intentionally removed slots or heavily damaged connectors may be downgraded during inspection.

Electronic Components Should Remain Intact

Complete motherboards provide greater recycling value than stripped boards. Therefore, we strongly prefer boards that still contain their original electronic components.

These include:

• Integrated circuits (ICs)
• BIOS chip
• Super I/O controller
• Voltage regulator modules
• MOSFETs
• Capacitors
• Inductors and coils
• Resistors
• Crystal oscillators
• Power management components

Minor missing passive components are generally acceptable, but excessive component harvesting may reduce the buying price.

Gold Recovery Components

The ECS GeForce6100SM-M V1.0 contains various precious-metal-bearing components that make it suitable for electronic recycling. Recoverable materials are commonly found in the CPU socket contacts, gold-plated connector surfaces, integrated circuit bonding wires, connector pins, and plated edge contacts.

Maintaining these components in their original condition helps maximize recycling efficiency and supports more accurate grading during inspection.

Boards We Do Not Accept

To maintain consistent grading standards, we do not accept ECS GeForce6100SM-M V1.0 Desktop Motherboards under the following conditions:

• Chipset IC removed
• CPU socket removed
• Empty BGA solder pads
• Severely broken PCB
• Burned motherboard
• Fire-damaged boards
• Heavy corrosion
• Liquid-damaged boards beyond repair
• Large sections cut from the PCB
• Excessive component harvesting
• Multiple missing connectors or major integrated circuits

Boards showing these conditions may be rejected or purchased as lower-grade mixed electronic scrap.

Preferred Shipping Condition

For the highest buying value, suppliers should ship motherboards in complete condition. Whenever possible, package boards carefully to prevent cracked CPU sockets, broken connectors, or damaged chipsets during transportation.

Stack motherboards neatly, avoid excessive pressure on the CPU socket area, and separate heavily damaged boards from complete boards before shipment. Clean, complete, and unmodified motherboards allow faster inspection and more accurate grading upon arrival.

Conclusion

The ECS GeForce6100SM-M V1.0 Desktop Motherboard Scrap is purchased by Ohata Resource Canada Inc. as D Grade Desktop Motherboard Scrap because it uses an AMD Socket AM2 platform. To receive the best possible evaluation, the motherboard should remain complete with the original CPU socket, NVIDIA chipset, rear I/O connectors, memory slots, and major electronic components fully intact. Removing chipset ICs, cutting the PCB, or harvesting valuable components will reduce the recycling value and may result in rejection. Suppliers who provide complete, original, and undamaged motherboards can expect faster processing, more consistent grading, and competitive purchasing prices.
